TaeguTec Cutting Tools - Metal Working Tools - Thread Making -

MTECM-UN : Triple lead solid carbide threading end mills for low cutting loads

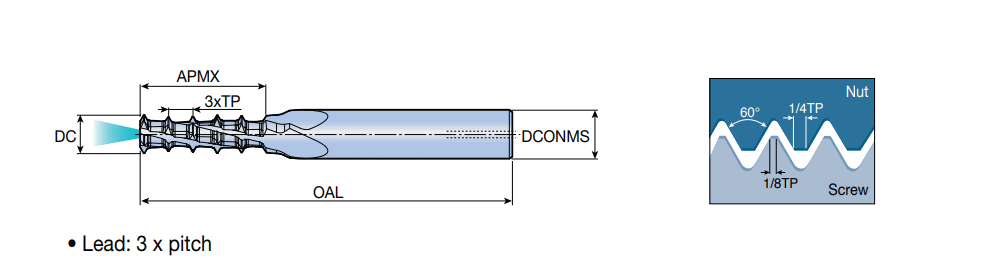

Designation	S1	TPI	UNC	DCONMS	DC	APMX	OAL	NOF	Shank	HAND	ClssID	CCMS	CZCMS	FTDZ	fz (max)	fz (min)	LF	LTA	THFT	TP	TTP	TTP_DF2		ZAX	LU	GRDMFG	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MTECM 0250C28 32UN	5.00~	32.0	#8	6.35	3.10	7.50	63.50	3	C	R ~	71EF07E083383 ~	~	~	~	0.000~	0.000~	0.00~	27.50~	~	0.00~	~	~	0.00~	0~	0.0~	TT9030~	6284339	1	TT9030
MTECM 0250C50 24UN	6.00~	24.0	#10	6.35	3.50	13.20	63.50	3	C	R ~	71EF07E083383 ~	~	~	~	0.000~	0.000~	0.00~	27.50~	~	0.00~	~	~	0.00~	0~	0.0~	TT9030~	6284340	1	TT9030
MTECM 06047C16 20UN	7.00~	20.0	1/4	6.00	4.70	17.10	58.00	3	C	R ~	71EF07E083383 ~	~	~	~	0.000~	0.000~	0.00~	26.90~	~	0.00~	~	~	0.00~	0~	0.0~	TT9030~	6284342	1	TT9030
MTECM 0250C65 20UN	8.00~	20.0	1/4	6.35	4.70	17.10	63.50	3	C	R ~	71EF07E083383 ~	~	~	~	0.000~	0.000~	0.00~	27.50~	~	0.00~	~	~	0.00~	0~	0.0~	TT9030~	6284341	1	TT9030
MTECM 0312D09 16UN	10.00~	16.0	3/8	7.94	7.40	24.50	63.50	4	C	R ~	71EF07E083383 ~	~	~	~	0.000~	0.000~	0.00~	27.50~	~	0.00~	~	~	0.00~	0~	0.0~	TT9030~	6284343	1	TT9030
