TaeguTec Cutting Tools - Metal Working Tools - Thread Making -

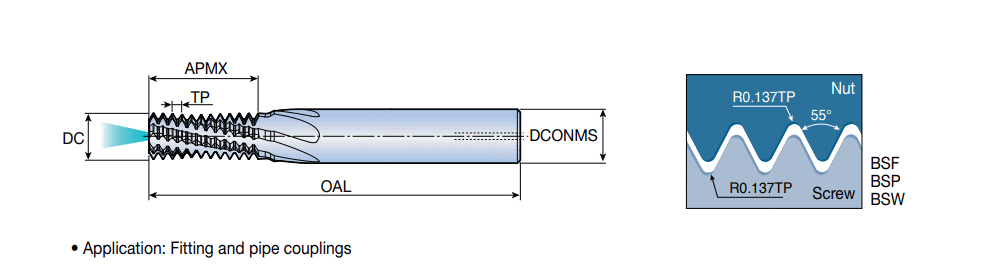

MTECBF-W : Solid carbide threading end mills with large number of flutes

Designation	S1	TPI	TDZ	DCONMS	DC	LU	OAL	NOF	HAND	ClssID	CCMS		CZCMS	FTDZ	fz (max)	fz (min)	LTA	Shank	THFT	THFT_2	TP	TTP	TTP_DF2		ZAX	GRDMFG	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MTECBF 08078H14 28W	2.00~	28.0	G1/8	8.00	7.80	14.0	64.00	8	R ~	71EF07E083383 ~	8000 ~	O ~	8000 ~	~	0.000~	0.000~	999.00~	C ~	~	~	0.00~	~	~	0.00~	0~	TT9030~	6284730	1	TT9030
MTECBF 1010G16 19W	4.00~	19.0	G1/4-3/8	10.00	10.00	16.0	73.00	7	R ~	71EF07E083383 ~	1000 ~	O ~	1000 ~	~	0.000~	0.000~	999.00~	C ~	~	~	0.00~	~	~	0.00~	0~	TT9030~	6284729	1	TT9030
MTECBF 1614H26 14W	6.00~	14.0	G1/2-7/8	12.00	14.00	26.2	105.00	8	R ~	71EF07E083383 ~	1600 ~	O ~	1600 ~	~	0.000~	0.000~	999.00~	C ~	~	~	0.00~	~	~	0.00~	0~	TT9030~	6284728	1	TT9030
MTECBF 1616H38 11W	8.00~	11.0	G7/18	16.00	16.00	37.9	105.00	8	R ~	71EF07E083383 ~	1600 ~	O ~	1600 ~	~	0.000~	0.000~	999.00~	C ~	~	~	0.00~	~	~	0.00~	0~	TT9030~	6284727	1	TT9030
