TaeguTec Cutting Tools - Metal Working Tools - Thread Making -

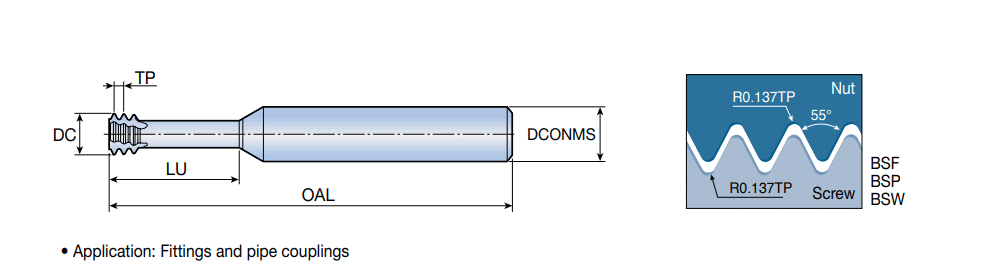

MTECS-W : Solid carbide threading end mills with short cutting flutes for low cutting loads

Designation	S1	TPI	TDZ	DCONMS	DC	LU	OAL	NOF	HAND	ClssID	CCMS		CZCMS	FTDZ	fz (max)	fz (min)	LTA	Shank	THFT	THFT_2	TP	TTP	TTP_DF2		ZAX	GRDMFG	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MTECS 08078C19 28W	2.00~	28.0	G1/8	8.00	7.80	19.5	64.00	3	R ~	71EF07E083383 ~	8000 ~	O ~	8000 ~	~	0.000~	0.000~	28.00~	C ~	~	~	0.00~	~	~	0.00~	0~	TT9030~	6274402	1	TT9030
MTECS 1010D30 19W	4.00~	19.0	G1/4-3/8	10.00	10.00	30.0	73.00	4	R ~	71EF07E083383 ~	1000 ~	O ~	1000 ~	~	0.000~	0.000~	33.00~	C ~	~	~	0.00~	~	~	0.00~	0~	TT9030~	6274403	1	TT9030
MTECS 1212D37 14W	6.00~	14.0	G1/2-7/8	12.00	12.00	37.0	84.00	4	R ~	71EF07E083383 ~	1200 ~	O ~	1200 ~	~	0.000~	0.000~	39.00~	C ~	~	~	0.00~	~	~	0.00~	0~	TT9030~	6274404	1	TT9030
MTECS 1616D44 11W	8.00~	11.0	G>=1	16.00	16.00	44.0	105.00	4	R ~	71EF07E083383 ~	1600 ~	O ~	1600 ~	~	0.000~	0.000~	57.00~	C ~	~	~	0.00~	~	~	0.00~	0~	TT9030~	6274408	1	TT9030
