TaeguTec Cutting Tools - Metal Working Tools - Boring System -

BSFD MB : Digital fine boring heads with 1 um accurate adjustment and detachable display

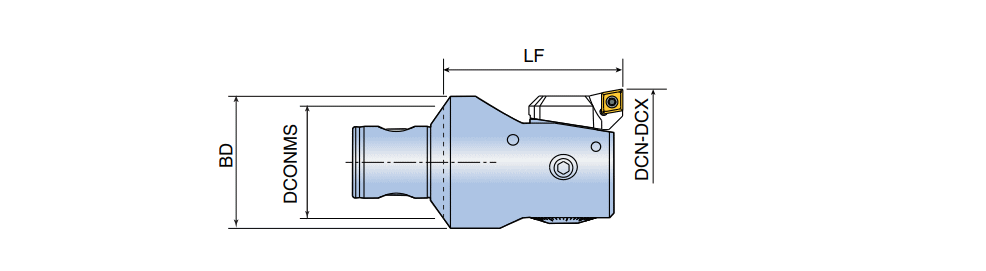

Designation	DCONMS	DCN	DCX	LF	BD		Insert H	ClssID	LTA	DCONWS	S3	S4	GICAT
BSFD MB20-24-37-A	20.00	23.90	37.10	40.00	22.50	0.10	CAR-CC...A	~	0.00~	20.00~	A ~	~	6294401
BSFD MB25-31-47-B	25.00	30.90	47.10	50.00	29.00	0.20	CAR-CC...B	~	0.00~	25.00~	B ~	~	6294402
BSFD MB32-40-59-C	32.00	39.90	59.10	63.00	37.00	0.50	CAR-CC...C	~	0.00~	32.00~	C ~	~	6294403
BSFD MB40-51-81-D	40.00	50.90	81.10	80.00	47.00	1.00	CAR-CC...D	~	0.00~	40.00~	D ~	~	6294404
BSFD MB50-67-105-E	50.00	66.90	105.10	80.00	59.00	1.60	CAR-CC...EFG	~	0.00~	50.00~	EFG ~	~	6294405
BSFD MB63-87-134-F	63.00	86.90	134.10	88.00	72.00	3.10	CAR-CC...EFG	~	0.00~	63.00~	EFG ~	~	6294406
BSFD MB80-115-203-G	80.00	115.90	203.10	104.00	94.00	5.00	CAR-CC...EFG	~	0.00~	80.00~	EFG ~	IG ~	6294407
