TaeguTec Cutting Tools - Metal Working Tools - Boring System -

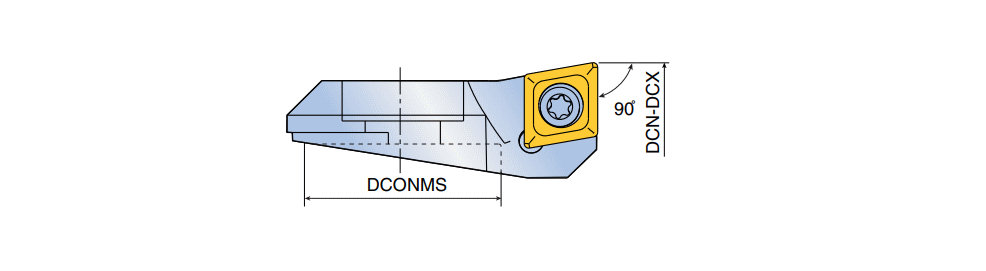

CAR-CC : Side lock insert holders for BSFD MB boring heads

Designation	S1	DCN	DCX	DCN_2	DCX_2	DCN_3	DCX_3	DCONMS	MIID	IC	S	S3	GICAT
CAR-CC0602-1-A	1.00~	23.90	31.10	-	-	-	-	11.00	CC..0602..	6.35~	2.38~	A ~	6294408
CAR-CC0602-2-A	2.00~	29.60	37.10	-	-	-	-	11.00	CC..0602..	6.35~	2.38~	A ~	6294409
CAR-CC0602-1-B	3.00~	30.90	40.10	-	-	-	-	13.00	CC..0602..	6.35~	2.38~	B ~	6294410
CAR-CC0602-2-B	4.00~	37.90	47.10	-	-	-	-	13.00	CC..0602..	6.35~	2.38~	B ~	6294411
CAR-CC0602-1-C	5.00~	39.90	51.10	-	-	-	-	17.00	CC..0602..	6.35~	2.38~	C ~	6294412
CAR-CC0602-2-C	6.00~	47.90	59.10	-	-	-	-	17.00	CC..0602..	6.35~	2.38~	C ~	6294413
CAR-CC0602-1-D	7.00~	51.10	67.10	-	-	-	-	22.00	CC..0602..	6.35~	2.38~	D ~	6294414
CAR-CC0602-2-D	8.00~	64.90	81.10	-	-	-	-	22.00	CC..0602..	6.35~	2.38~	D ~	6294415
CAR-CC0602-1-EFG	9.00~	66.90	87.10	86.90	116.10	115.90	153.10	30.00	CC..0602..	6.35~	2.38~	EFG ~	6294416
CAR-CC09T3-1-EFG	10.00~	66.90	87.10	86.90	116.10	115.90	153.10	30.00	CC..09T3..	9.52~	3.97~	EFG ~	6294418
CAR-CC0602-2-EFG	11.00~	84.90	105.10	104.90	134.10	133.90	171.10	30.00	CC..0602..	6.35~	2.38~	EFG ~	6294417
CAR-CC09T3-2-EFG	12.00~	84.90	105.10	104.90	134.10	133.90	171.10	30.00	CC..09T3..	9.52~	3.97~	EFG ~	6294419

A-Suitable for BSFD MB20-24-37-A B-Suitable for BSFD MB25-31-47-B C-Suitable for BSFD MB32-40-59-C D-Suitable for BSFD MB40-51-81-D E-Suitable for BSFD MB50-67-105-E F-Suitable for BSFD MB63-87-134-F
