Home Page > Boring System > > SH-DX-HI

Boring System
Main Application

Related Tool Related Holder
Machine Side

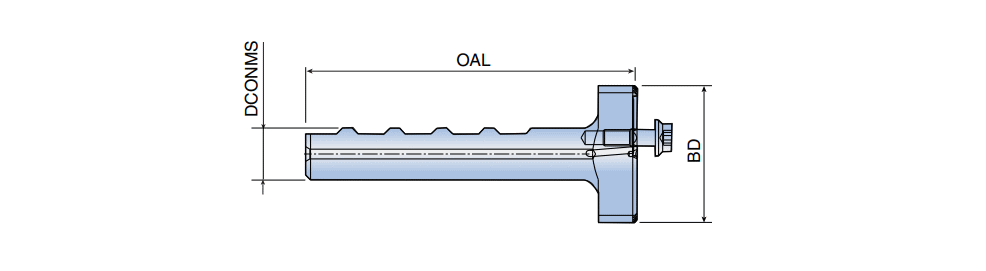

SH-DX-HI : Extension shanks for sliding insert holders for BSFD-H/I boring heads

Designation	BD	OAL	DCONMS		Insert H	S3	GICAT	GIREM	giic	GICODE
SH-DX-30-48-1-HI	25.00	103.00	16.00	0.18	BAR-DX...1-HI	1-HI ~	6294428		0
SH-DX-48-88-2-HI	42.00	101.00	16.00	0.22	BAR-DX...2-HI	2-HI ~	6294429		0

Please verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
