Home Page > Boring System > > BAR-DX-CC0602-HI

Boring System
Main Application

Related Insert Related Holder

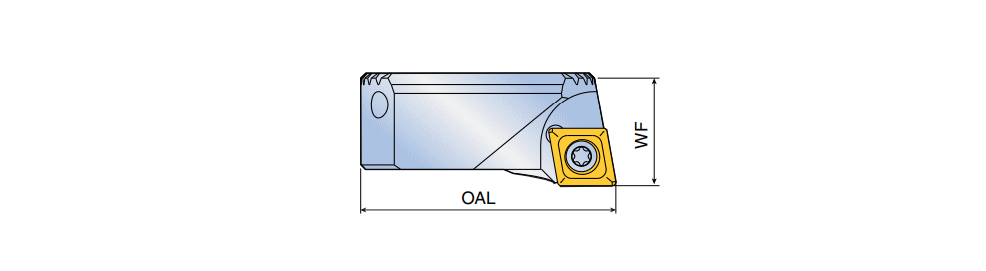

BAR-DX-CC0602-HI : Sliding insert holders for BSFD-H/I boring heads

Designation	WF	OAL	DCN	DCX	MIID	E/S	IC	S3	IIC	IIC_2	GICAT	GIREM	giic	GICODE
BAR-DX-CC0602-1-HI	12.00	28.20	29.75	48.10	CC..0602..	SH-DX...1-HI	6.35~	1-HI ~	~	~	6294430		0
BAR-DX-CC0602-2-HI	14.00	46.00	47.75	88.10	CC..0602..	SH-DX...2-HI	6.35~	2-HI ~	~	~	6294431		0
