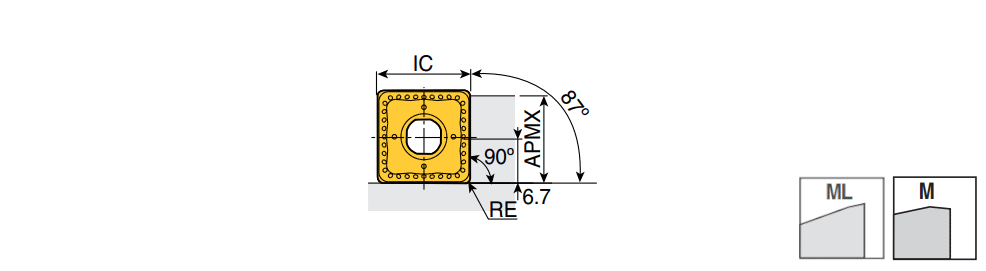

SNMX 1306-M : Double-sided square inserts with 8 cutting edges for 90 face mills and general applications from roughing to finishing

Designation	IC	S	RE	APMX	S1	W.link	ap (min)	ap (max)	fz (max)	fz (min)	SF	CEDC	Insert	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SNMX 130620-M	13.50	6.80	2.00	11.00	13.00~	0~	3.50	10.00	0.200	0.100	~	8~	C2Q-SN13 ~	S ~	71DD68D829217 ~	U60 ~	M ~	TT6080~	~	SNMX 13 ~	0~	6274084	3	TT9080 TT7515 TT6080
SNMX 130604-M	13.50	6.90	0.40	12.00	13.00~	0~	3.50	10.00	0.200	0.100	~	8~	C2Q-SN13 ~	S ~	71DD68D829217 ~	U60 ~	M ~	TT6080~	~	SNMX 13 ~	0~	6274078	1	TT6080
SNMX 130608-M	13.50	7.00	0.80	12.00	13.00~	0~	3.50	10.00	0.200	0.100	~	8~	C2Q-SN13 ~	S ~	71DD68D829217 ~	U60 ~	M ~	TT6080~	~	SNMX 13 ~	0~	6274079	2	TT9080 TT6080
SNMX 130612-M	13.50	7.00	1.20	12.00	13.00~	0~	3.50	10.00	0.200	0.100	~	8~	C2Q-SN13 ~	S ~	71DD68D829217 ~	U60 ~	M ~	TT6080~	~	SNMX 13 ~	0~	6274081	1	TT6080
