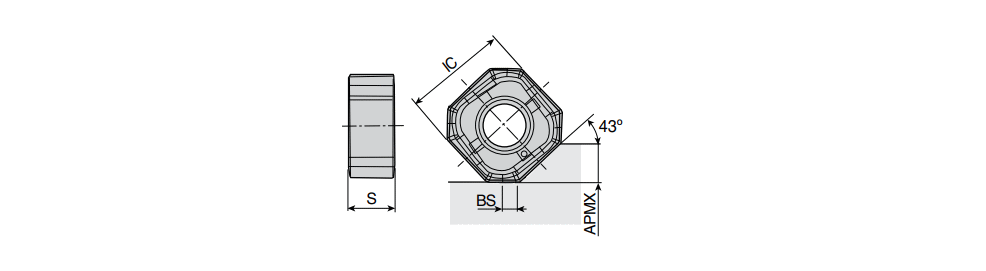

SQKU 11..-CE (Ceramic) : Double-sided Square Ceramic inserts with 8 cutting edges formachining cast iron

Designation	IC	S	APMX	BS	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	Insert	CE	SC	ClssID	ESP	CB	CEDC	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
SQKU 1105-CE	11.20	5.00	4.00	1.45	11.00~	1.00	3.00	0.250	0.130	71DDA089C8D1E ~	C8M-SQ11 ~	8~	S ~	71DD68D829217 ~	U65 ~	CE ~	8~	AS10 ~	~	SQKU 11 ~	0~	6276832		1		AS10

For 45° cutters only (do not use with 20° cutters 8D-TF20...)
