Home Page > Milling & Solid End mills > > HXKU 06..-CE (Ceramic)

Milling & Solid End mills
Main Application

Related Tool

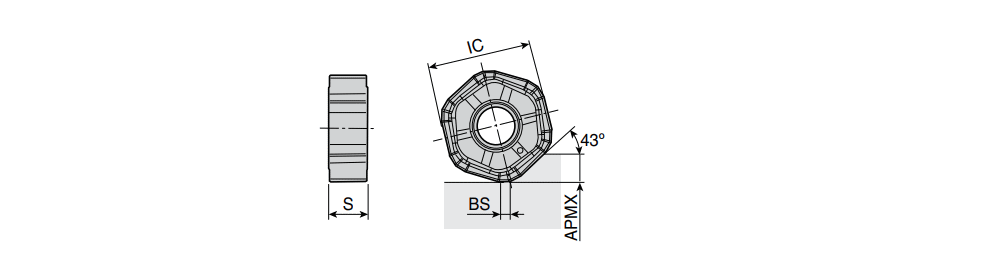

HXKU 06..-CE (Ceramic) : Double-sided Ceramic inserts of Economical 12 cutting edges for machining cast iron

Designation	IC	S	APMX	BS	S1	CEDC	Insert	fz (max)	fz (min)	ap (min)	ap (max)	SF	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
HXKU 0605-CE	14.00	5.40	3.00	1.00	6.00~	12~	C12M-HX06 ~	0.250	0.130	1.00	2.50	~	71DD68D7A8E5F ~	G40 ~	CE ~	AS10 ~	~	HXKU 06 ~	0~	6267996		1		AS10
