Home Page > Milling & Solid End mills > > HXKU 10..-CE (Ceramic)

Milling & Solid End mills
Main Application

Related Tool

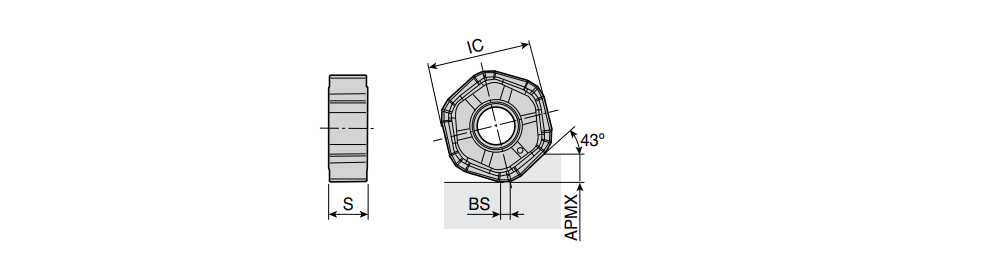

HXKU 10..-CE (Ceramic) : Double-sided Ceramic inserts of Economical 12 cutting edges for machining cast iron

Designation	IC	S	APMX	BS	S1	CEDC	Insert	fz (max)	fz (min)	ap (min)	ap (max)	SF	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
HXKU 1007-CE	19.05	6.30	5.00	1.20	10.00~	12~	C12M-HX10 ~	0.250	0.150	1.00	4.00	~	71DD68D7A8E5F ~	G40 ~	CE ~	AS10 ~	~	HXKU 10 ~	0~	6267997		1		AS10
