TaeguTec Cutting Tools - Metal Working Tools - Turning -

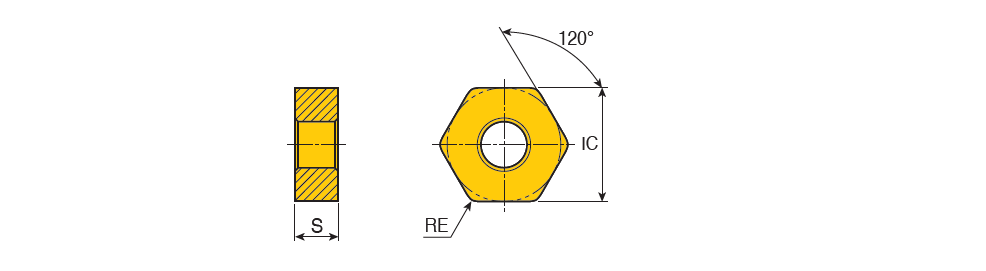

HNMG-SU : Negative 120° Hexagonal inserts for exotic materials of stainless steels, super alloys and low carbon steels with sharp geometry to minimize built-up edge

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
HNMG 050408 SU	12.70	4.76	0.80	6.20~	SU ~	120~	0.00~	0.50	3.50	0.15	0.50	12~	~	U ~	H ~	71DDA089C8D1E ~	CVD ~	TT5080~	2~	ISO$HN0504082NB$$08 ~	432 SU ~	HNMG ~	Y ~	5 ~	5523132		3		TT5100 TT5080 TT9215
HNMG 100612 SU	19.05	6.35	1.20	6.20~	SU ~	120~	0.00~	1.00	5.00	0.25	0.70	12~	~	U ~	H ~	71DDA089C8D1E ~	CVD ~	TT5080~	2~	ISO$HN1006122NB$$12 ~	643 S ~	HNMG ~	Y ~	10 ~	5523140		2		TT5100 TT5080
