TaeguTec Cutting Tools - Metal Working Tools - Turning -

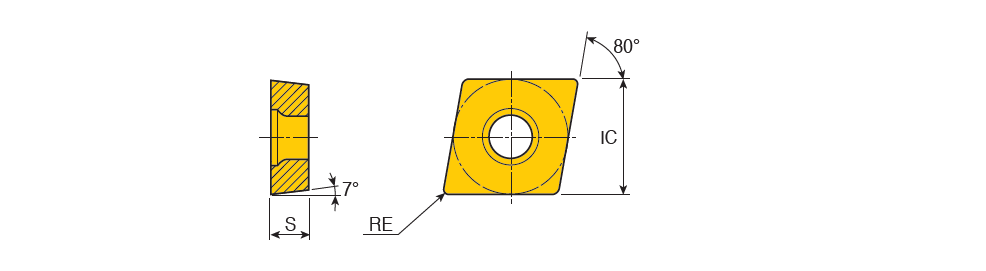

CCET R/L-GW : Precision positive ground 80° Rhombic inserts with wiper geometry of good surface finish for super-finishing of small parts in steel, stainless steel & alloy steel

Right hand shown

Designation	IC	S	RE	D1	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	HAND	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	GICAT	giic	Grade & Vc Click on grade for cutting speed value
CCET 0602003 L-GW	6.35	2.38	0.03	2.80~	6.30~	GW ~	80~	7.00~	0.10	1.50	0.02	0.15	2~	P ~	~	C ~	L ~	71DD68D301C30 ~	PVD ~	TT9020~	3~	ISO$CC0602003LB$$00 ~	21.5X0 ~	CCET ~	Y ~	5519649	1	TT9020
CCET 09T3003 L-GW	9.52	3.97	0.03	4.40~	6.30~	GW ~	80~	7.00~	0.10	2.50	0.02	0.15	2~	P ~	~	C ~	L ~	71DD68D301C30 ~	PVD ~	TT9020~	3~	ISO$CC09T3003LB$$00 ~	32.5X0 ~	CCET ~	Y ~	5519936	1	TT9020
CCET 09T3003 R-GW	9.52	3.97	0.03	4.40~	6.30~	GW ~	80~	7.00~	0.10	2.50	0.02	0.15	2~	P ~	~	C ~	R ~	71DD68D301C30 ~	PVD ~	TT9020~	3~	ISO$CC09T3003RB$$00 ~	32.5X0 ~	CCET ~	Y ~	5517502	1	TT9020

Wiper inserts should be applied to *CLCR/L holders
