TaeguTec Cutting Tools - Metal Working Tools - Turning -

TCET R/L-GF : Precision positive ground Triangular inserts with sharp high rake cutting edge for small parts super finishing of steel, stainless steels & alloy steel

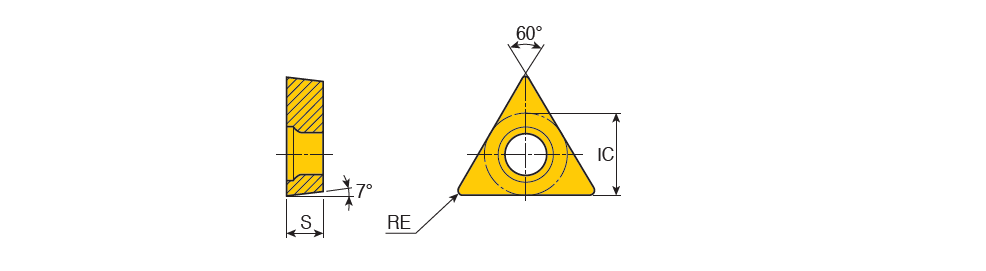

Right hand shown

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	HAND	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	GICAT	giic	Grade & Vc Click on grade for cutting speed value
TCET 080201 R-GF	4.76	2.38	0.10	0.00~	GF ~	60~	7.00~	0.20	1.50	0.02	0.15	3~	P ~	~	T ~	R ~	71DD68D8446CE ~	PVD ~	TT9020~	3~	ISO$TC0802013RB$$01 ~	630 R- ~	TCET ~	Y ~	6136505	1	TT9020
TCET 080202 L-GF	4.76	2.38	0.20	0.00~	GF ~	60~	7.00~	0.30	1.50	0.03	0.17	3~	P ~	~	T ~	L ~	71DD68D8446CE ~	PVD ~	TT9020~	3~	ISO$TC0802023LB$$02 ~	630.5 ~	TCET ~	Y ~	6136506	1	TT9020
TCET 080202 R-GF	4.76	2.38	0.20	0.00~	GF ~	60~	7.00~	0.30	1.50	0.03	0.17	3~	P ~	~	T ~	R ~	71DD68D8446CE ~	PVD ~	TT9020~	3~	ISO$TC0802023RB$$02 ~	630.5 ~	TCET ~	Y ~	6136507	1	TT9020
TCET 110301 L-GF	6.35	3.18	0.10	0.00~	GF ~	60~	7.00~	0.20	1.50	0.02	0.15	3~	P ~	~	T ~	L ~	71DD68D8446CE ~	PVD ~	TT9020~	3~	ISO$TC1103013LB$$01 ~	220 L- ~	TCET ~	Y ~	6136510	1	TT9020
TCET 110301 R-GF	6.35	3.18	0.10	11.00~	GF ~	60~	7.00~	0.20	1.50	0.02	0.15	3~	P ~	~	T ~	R ~	71DD68D8446CE ~	PVD ~	TT9020~	3~	ISO$TC1103013RB$$01 ~	220 R- ~	TCET ~	Y ~	5517350	1	TT9020
TCET 110302 R-GF	6.35	3.18	0.20	11.00~	GF ~	60~	7.00~	0.30	1.50	0.03	0.17	3~	P ~	~	T ~	R ~	71DD68D8446CE ~	PVD ~	TT9020~	3~	ISO$TC1103023RB$$02 ~	220.5 ~	TCET ~	Y ~	5517622	1	TT9020
TCET 110304 L-GF	6.35	3.18	0.40	11.00~	GF ~	60~	7.00~	0.50	1.50	0.05	0.20	3~	P ~	~	T ~	L ~	71DD68D8446CE ~	PVD ~	TT9020~	3~	ISO$TC1103043LB$$04 ~	221 L- ~	TCET ~	Y ~	6137550	1	TT9020
TCET 110304 R-GF	6.35	3.18	0.40	11.00~	GF ~	60~	7.00~	0.50	1.50	0.05	0.20	3~	P ~	~	T ~	R ~	71DD68D8446CE ~	PVD ~	TT9020~	3~	ISO$TC1103043RB$$04 ~	221 R- ~	TCET ~	Y ~	5517985	1	TT9020
