TaeguTec Cutting Tools - Metal Working Tools - Turning -

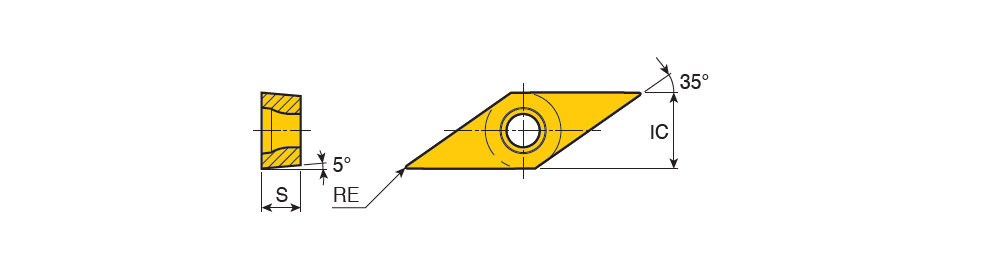

VBET R/L-GW : Precision positive ground 35° Rhombic inserts with wiper geometry of good surface finish for super-finishing of small parts in steel, stainless steel & alloy steel

Right hand shown

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	HAND	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
VBET 1103003 R-GW	6.35	3.18	0.03	11.10~	GW ~	35~	5.00~	0.10	1.50	0.02	0.15	2~	P ~	~	V ~	R ~	71DD68D301C30 ~	PVD ~	TT9020~	3~	ISO$VB1103003RB$$00 ~	22X0 R ~	VBET ~	Y ~	5517504		1		TT9020

Wiper inserts should be applied to *VJBR/L holders
