Turning
Main Application

MDQNR/L : Multi Lock holder for approach angle 107.5° & negative 55° Rhombic inserts

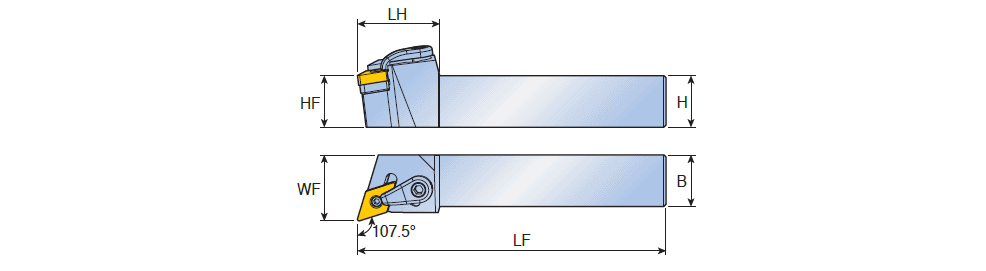

Right-hand shown

Right-hand shown

  DesignationHF H B LF LH WF IC t Kr KAPR CL Tool typ HAND ClssID MIID IIC IIC_2 IIC_3 GICATGIREMgiicGICODE
  MDQNR 2020 K15 20.020.020.0125.0040.025.0012.70~4.76~108~108.0~Multi Lock ~SQUARE ~R ~71E01A0E85121 ~DNGA 150408 IS$$242400693101226 ~IS$$493442649564267 ~IS$$581084907694694 ~3600081 0
  MDQNL 2525 M15 25.025.025.0150.0040.032.0012.70~4.76~108~108.0~Multi Lock ~SQUARE ~L ~71E01A0E85121 ~DNGA 150408 IS$$231914955097111 ~IS$$493442649564267 ~IS$$581084907694694 ~3600388 0
  MDQNL 2525 M15A 25.025.025.0150.0040.032.0012.70~6.35~108~108.0~Multi Lock ~SQUARE ~L ~71E01A0E85121 ~DNGA 150608 IS$$401217296969863 ~IS$$808521261787470 ~IS$$850587966573147 ~6341248 0
  MDQNR 2525 M15 25.025.025.0150.0040.032.0012.70~4.76~108~108.0~Multi Lock ~SQUARE ~R ~71E01A0E85121 ~DNGA 150408 IS$$242400693101226 ~IS$$493442649564267 ~IS$$581084907694694 ~3600389 0
  MDQNR 2525 M15A 25.025.025.0150.0040.032.0012.70~6.35~108~108.0~Multi Lock ~SQUARE ~R ~71E01A0E85121 ~DNGA 150608 IS$$384556734858845 ~IS$$808521261787470 ~IS$$850587966573147 ~6161217 0
-15A: DN.. 1506
-15: DN.. 1504
