TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

2PKT 05-M : Positive double-sided inserts with two helical cutting edges & strong double-dovetail design for stable machining of 90° shouldering

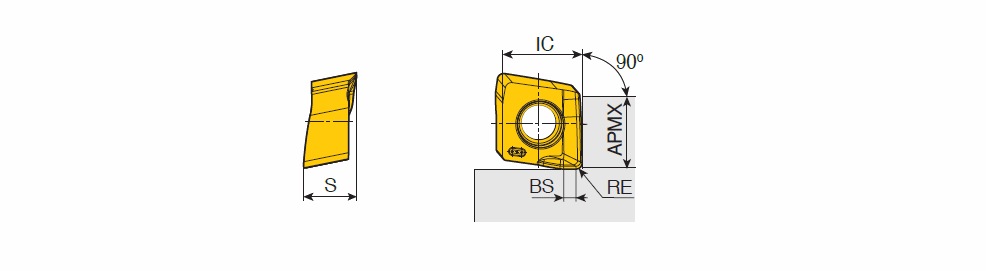

Designation	IC	S	APMX	BS	RE	fz (max)	fz (min)	ap (min)	ap (max)	S1	Insert	ESP	CEDC	SC	ClssID	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
2PKT 050304R-M	5.17	3.40	4.70	0.80	0.40	0.180	0.060	0.50	4.20	5.00~	CMP-2P05 ~	U60 ~	2~	B ~	71DD68D301C30 ~	M ~	TT2510~	IS$$1730808543545830 ~	2PKT 05 ~	0~	6142747		3		TT8080 TT9080 TT2510
2PKT 050308R-M	5.17	3.40	4.70	0.40	0.80	0.180	0.060	0.50	4.20	5.00~	CMP-2P05 ~	U60 ~	2~	B ~	71DD68D301C30 ~	M ~	TT8080~	IS$$1730808543545830 ~	2PKT 05 ~	0~	6154121		2		TT8080 TT9080
