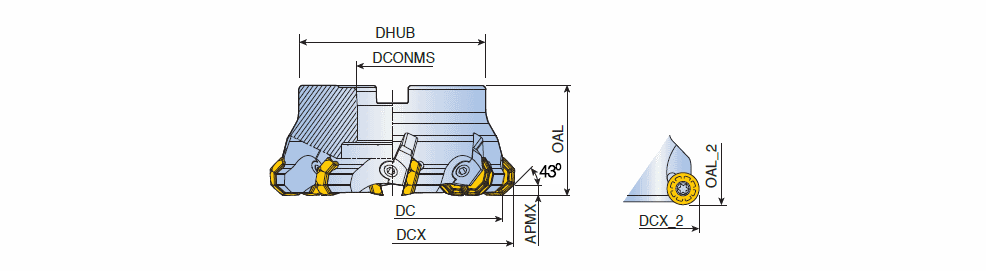

TFM43ZOFW-R-07 : Wedge clamping type 43° Face mills with positive octagon inserts

Designation	Tool sty	DC	CICT	DCX	DCX_2	DCONMS	DHUB	OAL	OAL_2	APMX		Arbor	S1	S5	S6	RMPX	KAPR	HAND	PD	Insert	Mtg. Ref	ClssID	MIID		CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	ZNP	GICAT
TFM43ZOFW 463-22R-07	FACE MILL ~	63.00	4	75.10	76.09	22.00	47.00	40.00	40.70	5.00	0.50	A	7.00~	22.00000 ~	~	4.30~	43.0~	~	RC ~	CO-OF07 ~	SH M10X1.5X30 ~	71E01A05B627B ~	OFCR 0704 TN-EML	X ~	FDA ~	02 ~	IS$$154688328580464 ~	40.00~	4~	4~	4~	3104916
TFM43ZOFW 580-27R-07	FACE MILL ~	80.00	5	92.00	93.08	27.00	70.00	50.00	50.70	5.00	1.20	A	7.00~	27.00000 ~	~	3.30~	43.0~	~	RC ~	CO-OF07 ~	- ~	71E01A05B627B ~	OFCR 0704 TN-EML	X ~	FDA ~	02 ~	IS$$154688328580464 ~	50.00~	5~	5~	5~	3104917
TFM43ZOFW 6100-31.75R-07	FACE MILL ~	100.00	6	112.00	113.07	31.75	80.00	50.00	50.70	5.00	1.80	B	7.00~	~	~	2.80~	43.0~	~	RC ~	CO-OF07 ~	- ~	71E01A05B627B ~	OFCR 0704 TN-EML	X ~	FDA ~	02 ~	IS$$154688328580464 ~	50.00~	6~	6~	6~	3106455
TFM43ZOFW 6100-32R-07	FACE MILL ~	100.00	6	112.00	113.07	32.00	85.00	50.00	50.70	5.00	1.80	B	7.00~	32.00000 ~	~	2.80~	43.0~	~	RC ~	CO-OF07 ~	- ~	71E01A05B627B ~	OFCR 0704 TN-EML	X ~	FDA ~	02 ~	IS$$154688328580464 ~	50.00~	6~	6~	6~	3104918
TFM43ZOFW 8100-32R-07	FACE MILL ~	100.00	8	112.00	113.07	32.00	85.00	50.00	50.70	5.00	1.80	B	7.00~	32.00000 ~	~	2.80~	43.0~	~	RF ~	CO-OF07 ~	- ~	71E01A05B627B ~	OFCR 0704 TN-EML	X ~	FDA ~	02 ~	IS$$154688328580464 ~	50.00~	8~	8~	8~	3105166
TFM43ZOFW 10125-40R-07	FACE MILL ~	125.00	10	137.00	138.06	40.00	85.00	63.00	63.70	5.00	3.00	B	7.00~	40.00000 ~	~	2.30~	43.0~	~	RF ~	CO-OF07 ~	- ~	71E01A05B627B ~	OFCR 0704 TN-EML	X ~	FDA ~	02 ~	IS$$154688328580464 ~	63.00~	10~	10~	10~	6308437
TFM43ZOFW 8125-40R-07	FACE MILL ~	125.00	8	137.00	138.06	40.00	85.00	63.00	63.70	5.00	3.00	B	7.00~	40.00000 ~	~	2.30~	43.0~	~	RC ~	CO-OF07 ~	- ~	71E01A05B627B ~	OFCR 0704 TN-EML	X ~	FDA ~	02 ~	IS$$154688328580464 ~	63.00~	8~	8~	8~	6162093
TFM43ZOFW 10160-40R-07	FACE MILL ~	160.00	10	172.00	173.06	40.00	110.00	63.00	63.70	5.00	4.70	C	7.00~	~	40.00000 ~	1.50~	43.0~	~	RC ~	CO-OF07 ~	- ~	71E01A05B627B ~	OFCR 0704 TN-EML	X ~	SPK ~	02 ~	IS$$154688328580464 ~	63.00~	10~	10~	10~	3104136
TFM43ZOFW 10160-50.8R-07	FACE MILL ~	160.00	10	172.00	173.06	50.80	100.00	63.00	63.70	5.00	4.70	B	7.00~	~	~	1.50~	43.0~	~	RC ~	CO-OF07 ~	- ~	71E01A05B627B ~	OFCR 0704 TN-EML	X ~	FDA ~	02 ~	IS$$154688328580464 ~	63.00~	10~	10~	10~	3106457
TFM43ZOFW 12160-40R-07	FACE MILL ~	160.00	12	172.00	173.06	40.00	110.00	63.00	63.70	5.00	4.70	C	7.00~	~	40.00000 ~	1.50~	43.0~	~	RF ~	CO-OF07 ~	- ~	71E01A05B627B ~	OFCR 0704 TN-EML	X ~	SPK ~	02 ~	IS$$154688328580464 ~	63.00~	12~	12~	12~	3105663
TFM43ZOFW 12200-60R-07	FACE MILL ~	200.00	12	212.00	213.05	60.00	130.00	63.00	63.70	5.00	7.00	C	7.00~	~	60.00000 ~	1.20~	43.0~	~	RC ~	CO-OF07 ~	- ~	71E01A05B627B ~	OFCR 0704 TN-EML	X ~	SPK ~	02 ~	IS$$154688328580464 ~	63.00~	12~	12~	12~	3104919
TFM43ZOFW 14200-60R-07	FACE MILL ~	200.00	14	212.00	213.05	60.00	130.00	63.00	63.70	5.00	7.00	C	7.00~	~	60.00000 ~	1.20~	43.0~	~	RF ~	CO-OF07 ~	- ~	71E01A05B627B ~	OFCR 0704 TN-EML	X ~	SPK ~	02 ~	IS$$154688328580464 ~	63.00~	14~	14~	14~	6308441
