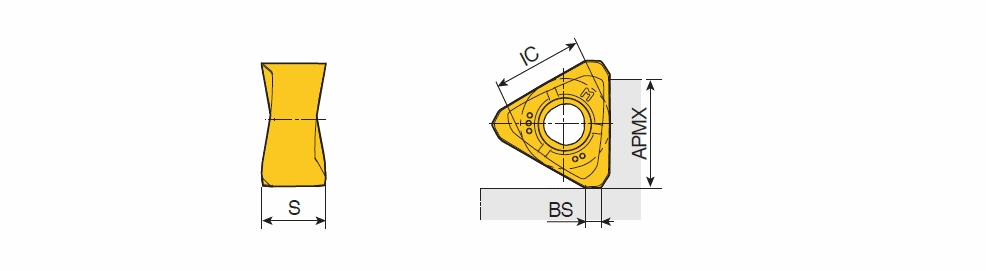

TNGX 22 PNTN : Triangular double-sided ground inserts with strong 6 cutting edges for 90° shouldering of heavy and general machining

Designation	l	IC	S	BS	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	CEDC	Insert	SC	ESP	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TNGX 2207 PNTN	12.70~	12.70	8.00	2.20	15.00	22.00~	4.50	12.00	0.300	0.150	M8 ~	6~	L2T-TN22 ~	T ~	G60 ~	8525B ~	IS$$191849164146582 ~	TNGX 22 ~	0~	6338313		5		TT8080 TT8525B TT7080 TT9080 TT6080
