TaeguTec Cutting Tools - Metal Working Tools - Turning -

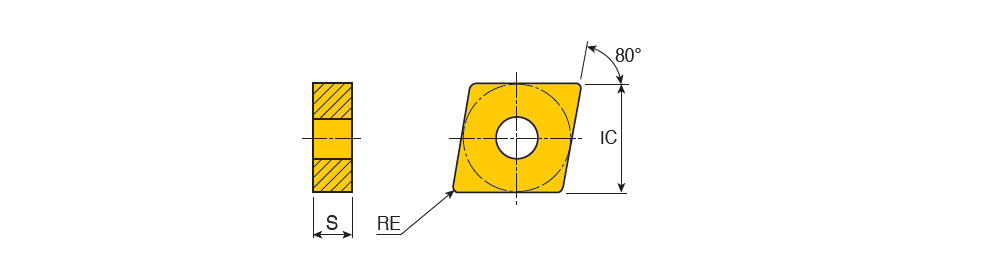

CNMG-MM (RHINO) : Negative 80° Rhombic RHINOTURN inserts for general machining of stainless steels & steels

Designation	IC	S	RE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
CNMG 090404 MM	9.52	4.76	0.40	MM ~	80~	0.00~	0.40	3.00	0.15	0.45	4~	~	U ~	9.70~	C ~	71DD68D301C30 ~	RHINO-TURN ~	CVD ~	8115B ~	2~	ISO$CN0904042NB$$04 ~	331 MM ~	CNMG ~	Y ~	9 ~	6212568	6	TT9235 TT9080 TT9225 TT5100 TT9215 TT8115B
CNMG 090408 MM	9.52	4.76	0.80	MM ~	80~	0.00~	0.50	3.00	0.20	0.50	4~	~	U ~	9.70~	C ~	71DD68D301C30 ~	RHINO-TURN ~	CVD ~	8115B ~	2~	ISO$CN0904082NB$$08 ~	332 MM ~	CNMG ~	Y ~	9 ~	6303084	9	TT9235 TT8135B TT9080 TT9225 TT5100 TT8125B TT5080 TT9215 TT8115B
CNMG 090412 MM	9.52	4.76	1.20	MM ~	80~	0.00~	0.70	3.00	0.23	0.50	4~	~	U ~	9.70~	C ~	71DD68D301C30 ~	RHINO-TURN ~	CVD ~	8115B ~	2~	ISO$CN0904122NB$$12 ~	333 MM ~	CNMG ~	Y ~	9 ~	6241725	6	TT9235 TT9080 TT9225 TT5100 TT8125B TT8115B
