TFM90SNS-R-12 : 90° Face mills with adjustable pockets and precision ground wiper SN 12 inserts for finishing of steels and cast irons

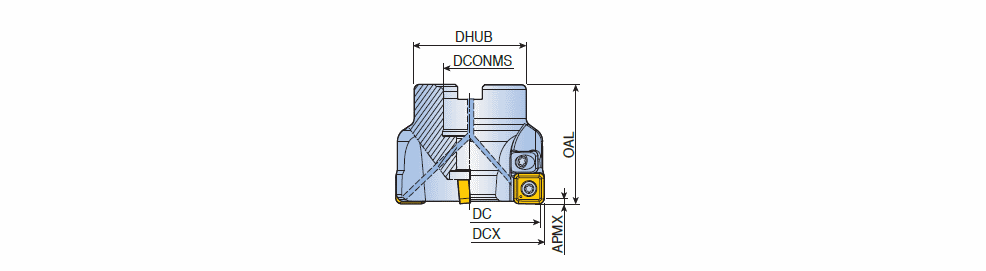

Designation	Tool sty	DC	CICT	DCONMS	DHUB	OAL	DCX	APMX		Arbor		S1	KAPR	HAND	PD	Insert	Mtg. Ref	ClssID	MIID	CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	ZNP	GICAT
TFM90SNS 350-22R-12	FACE MILL ~	43.35	3	22.00	45.00	50.00	50.00	1.00	O	A	0.47	12.00~	90.0~	~	C ~	C2Q-SN12 ~	SH M10X1.5X40 ~	71E01A05B627B ~	SNEX 1204-W	FDA ~	02 ~	IS$$392518524851705 ~	50.00~	3~	3~	3~	6308451
TFM90SNS 463-22R-12	FACE MILL ~	56.35	4	22.00	47.00	50.00	63.00	1.00	O	A	0.63	12.00~	90.0~	~	RC ~	C2Q-SN12 ~	SH M10X1.5X40 ~	71E01A05B627B ~	SNEX 1204-W	FDA ~	02 ~	IS$$392518524851705 ~	50.00~	4~	4~	4~	6162435
TFM90SNS 680-27R-12	FACE MILL ~	73.35	6	27.00	58.00	50.00	80.00	1.00	O	A	1.01	12.00~	90.0~	~	RC ~	C2Q-SN12 ~	SH M12X1.75X35 ~	71E01A05B627B ~	SNEX 1204-W	FDA ~	02 ~	IS$$392518524851705 ~	50.00~	6~	6~	6~	3106575
TFM90SNS 12100-32R-12	FACE MILL ~	93.35	12	32.00	66.00	63.00	100.00	1.00	O	A	1.91	12.00~	90.0~	~	F ~	C2Q-SN12 ~	SH M16X2.0X30 ~	71E01A05B627B ~	SNEX 1204-W	FDA ~	02 ~	IS$$392518524851705 ~	63.00~	12~	12~	12~	3106359
TFM90SNS 8100-32R-12	FACE MILL ~	93.35	8	32.00	66.00	63.00	100.00	1.00	O	A	1.90	12.00~	90.0~	~	RF ~	C2Q-SN12 ~	SH M16X2.0X30 ~	71E01A05B627B ~	SNEX 1204-W	FDA ~	02 ~	IS$$392518524851705 ~	63.00~	8~	8~	8~	6162401
TFM90SNS 10125-40R-12	FACE MILL ~	118.35	10	40.00	85.00	63.00	125.00	1.00	X	B	2.77	12.00~	90.0~	~	RF ~	C2Q-SN12 ~	- ~	71E01A05B627B ~	SNEX 1204-W	FDA ~	02 ~	IS$$392518524851705 ~	63.00~	10~	10~	10~	6162382
TFM90SNS 16125-40R-12	FACE MILL ~	118.35	16	40.00	85.00	63.00	125.00	1.00	X	B	2.77	12.00~	90.0~	~	F ~	C2Q-SN12 ~	- ~	71E01A05B627B ~	SNEX 1204-W	FDA ~	02 ~	IS$$392518524851705 ~	63.00~	16~	16~	16~	6162254
TFM90SNS 12160-40R-12	FACE MILL ~	153.35	12	40.00	110.00	63.00	160.00	1.00	X	C	4.21	12.00~	90.0~	~	RF ~	C2Q-SN12 ~	- ~	71E01A05B627B ~	SNEX 1204-W	SPK ~	02 ~	IS$$392518524851705 ~	63.00~	12~	12~	12~	3106212
TFM90SNS 20160-40R-12	FACE MILL ~	153.35	20	40.00	110.00	63.00	160.00	1.00	X	C	4.24	12.00~	90.0~	~	XF ~	C2Q-SN12 ~	- ~	71E01A05B627B ~	SNEX 1204-W	SPK ~	02 ~	IS$$392518524851705 ~	63.00~	20~	20~	20~	6162298
TFM90SNS 16200-60R-12	FACE MILL ~	193.35	16	60.00	130.00	63.00	200.00	1.00	X	C	5.76	12.00~	90.0~	~	RF ~	C2Q-SN12 ~	- ~	71E01A05B627B ~	SNEX 1204-W	SPK ~	02 ~	IS$$392518524851705 ~	63.00~	16~	16~	16~	6162383
TFM90SNS 24200-60R-12	FACE MILL ~	193.35	24	60.00	130.00	63.00	200.00	1.00	X	C	5.80	12.00~	90.0~	~	XF ~	C2Q-SN12 ~	- ~	71E01A05B627B ~	SNEX 1204-W	SPK ~	02 ~	IS$$392518524851705 ~	63.00~	24~	24~	24~	3105445
TFM90SNS 30250-60R-12	FACE MILL ~	243.35	30	60.00	160.00	63.00	250.00	1.00	X	C	10.48	12.00~	90.0~	~	F ~	C2Q-SN12 ~	- ~	71E01A05B627B ~	SNEX 1204-W	SPK ~	02 ~	IS$$392518524851705 ~	63.00~	30~	30~	30~	3105762

Recommend to do very stable machining condition at cast iron & steel for better finishing
Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
