TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

TDT-RU (Full radius-Pressed) : Double-ended pressed inserts for profiling, turning & grooving with stable cutting edge & good chip control when machining steel & cast iron

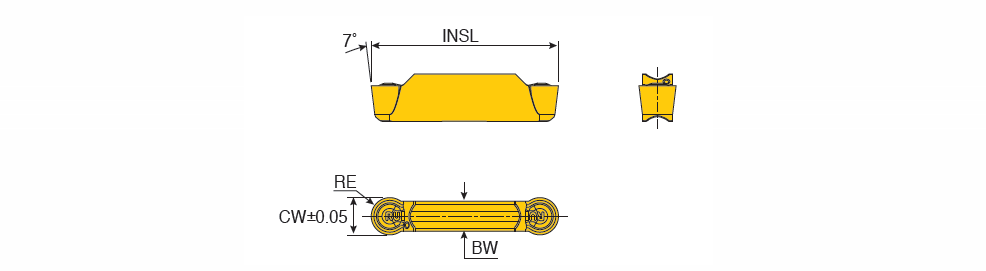

Designation	SSC	CW	RE	BW	INSL	h	S1	SC	R	ft (min)	ft (max)	ap (max)	fg (min)	fg (max)	CB1	W	W+-toler	ClssID	HAND	CEDC	COATP	CBMD	GRDMFG	IIC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TDT 2E-1.0-RU	2	2.00	1.00	1.7	20.00	4.7~	2.00~	L ~	0.050~	0.10	0.25	1.00	0.05	0.15	M6E ~	2.00~	0.05~	71DDA089C8D1E ~	N ~	2~	CVD ~	RU ~	K10 ~	IS$$2488729663158480 ~	6402312	7	TT7220 TT9080 TT5100 TT3010 K10 TT6080 TT7505
TDT 3E-1.5-RU	3	3.00	1.50	2.2	20.00	4.7~	3.00~	L ~	0.050~	0.15	0.28	1.50	0.08	0.18	M6E ~	3.00~	0.05~	71DDA089C8D1E ~	N ~	2~	CERMET ~	RU ~	CT3000~	IS$$2847999057167628 ~	6402103	8	TT7220 TT9080 TT5100 TT3010 K10 TT6080 TT7505 CT3000
TDT 4E-2.0-RU	4	4.00	2.00	3.0	20.00	4.7~	4.00~	L ~	0.050~	0.18	0.35	2.00	0.10	0.20	M6E ~	4.00~	0.05~	71DDA089C8D1E ~	N ~	2~	CERMET ~	RU ~	CT3000~	IS$$2473552115784750 ~	6402104	8	TT7220 TT9080 TT5100 TT3010 K10 TT6080 TT7505 CT3000
TDT 5E-2.5-RU	5	5.00	2.50	4.0	25.00	5.2~	5.00~	L ~	0.050~	0.20	0.42	2.50	0.12	0.23	M6E ~	5.00~	0.05~	71DDA089C8D1E ~	N ~	2~	CERMET ~	RU ~	CT3000~	IS$$2322815452179936 ~	6402105	8	TT7220 TT9080 TT5100 TT3010 K10 TT6080 TT7505 CT3000
TDT 6E-3.0-RU	6	6.00	3.00	5.0	25.00	5.2~	6.00~	L ~	0.050~	0.25	0.54	3.00	0.15	0.27	M6E ~	6.00~	0.05~	71DDA089C8D1E ~	N ~	2~	CERMET ~	RU ~	CT3000~	IS$$2332561923598740 ~	6402106	8	TT7220 TT9080 TT5100 TT3010 K10 TT6080 TT7505 CT3000
TDT 8E-4.0-RU	8	8.00	4.00	6.0	30.00	6.4~	8.00~	L ~	0.050~	0.30	0.67	4.00	0.18	0.35	M6E ~	8.00~	0.05~	71DDA089C8D1E ~	N ~	2~	CVD ~	RU ~	K10 ~	IS$$1990730896865092 ~	6402107	5	TT9080 TT5100 K10 TT6080 TT7505
