TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

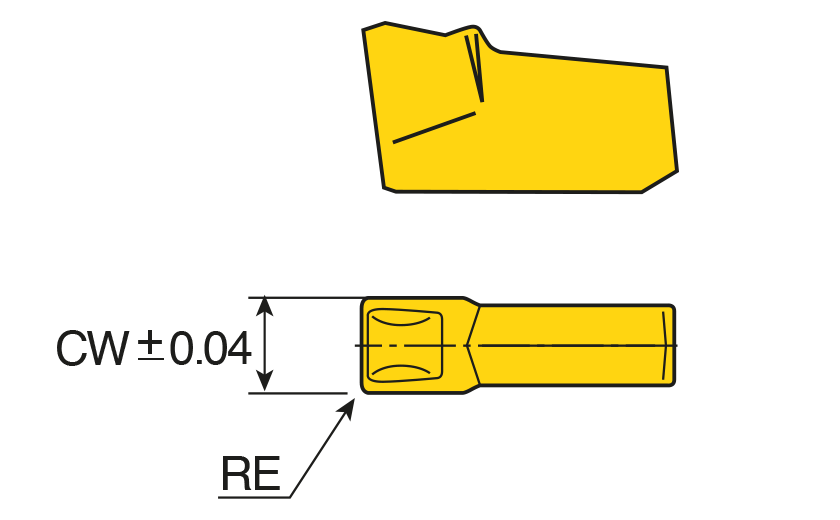

TIMC : Single ended inserts for parting, grooving & milling with C chip former of medium in hard materials & tough application

Designation	SSC	CW	RE	S1	SC	fz (max)	fz (min)	0	ClssID	CEDC	ESP	GRDMFG	IIC	Pocket	WEP	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TIMC 1.6	1	1.600	0.16	1.00~	L ~	0.120	0.040	~	71DDA089C8D1E ~	1~	U50 ~	K10 ~	IS$$16569946440288 ~	TIMC 1 ~	0~	6308665	5	TT8020 TT7220 TT9030 K10 TT6030
TIMC 2	2	2.200	0.20	2.00~	L ~	0.130	0.050	~	71DDA089C8D1E ~	1~	U50 ~	K10 ~	IS$$25662305143398 ~	TIMC 2 ~	0~	6308671	5	TT8020 TT7220 TT9030 K10 TT6030
TIMC 2.4	2	2.400	0.20	2.00~	L ~	0.150	0.060	~	71DDA089C8D1E ~	1~	U50 ~	TT9030~	IS$$16570103902129 ~	TIMC 2 ~	0~	6050432	1	TT9030
TIMC 3	4	3.100	0.20	3.00~	L ~	0.180	0.060	~	71DDA089C8D1E ~	1~	U50 ~	TT5100~	IS$$16570059248808 ~	TIMC 3 ~	0~	6308683	5	TT8020 TT7220 TT9030 TT5100 TT6030
TIMC 4	4	4.100	0.25	4.00~	L ~	0.200	0.080	~	71DDA089C8D1E ~	1~	U50 ~	TT7220~	IS$$16570087450998 ~	TIMC 4 ~	0~	6308696	3	TT8020 TT7220 TT9030
TIMC 4.8	4	4.800	0.28	5.00~	L ~	0.200	0.080	~	71DDA089C8D1E ~	1~	U50 ~	TT5100~	~	TIMC 4 ~	0~	6308707	2	TT8020 TT5100
