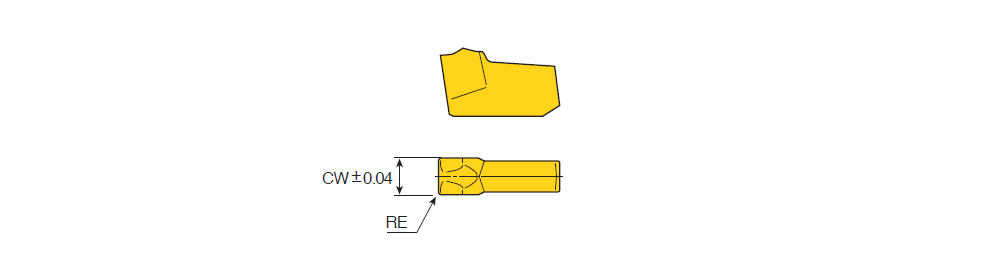

TIMJ : Single ended inserts for parting, grooving & milling with J chip breaker of soft materials & tube & thin-walled parts

Designation	SSC	CW	RE	S1	SC	fz (max)	fz (min)	0	ClssID	CEDC	ESP	GRDMFG	IIC	Pocket	WEP	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TIMJ 2	2	2.200	0.20	2.00~	L ~	0.120	0.040	~	71DDA089C8D1E ~	1~	U50 ~	TT5100~	IS$$25662305143398 ~	TIMJ 2 ~	0~	6308727	2	TT8020 TT5100
TIMJ 2.4	2	2.400	0.20	2.00~	L ~	0.130	0.050	~	71DDA089C8D1E ~	1~	U50 ~	K10 ~	IS$$16570103902129 ~	TIMJ 2 ~	0~	6308733	2	TT8020 K10
TIMJ 3	4	3.100	0.20	4.00~	L ~	0.150	0.050	~	71DDA089C8D1E ~	1~	U50 ~	K10 ~	IS$$16570059248808 ~	TIMJ 3 ~	0~	6308740	3	TT8020 TT5100 K10
TIMJ 4	4	4.100	0.25	4.00~	L ~	0.180	0.050	~	71DDA089C8D1E ~	1~	U50 ~	K10 ~	IS$$16570087450998 ~	TIMJ 4 ~	0~	6308750	2	TT8020 K10
TIMJ 4.8	4	4.800	0.28	4.00~	L ~	0.180	0.050	~	71DDA089C8D1E ~	1~	U50 ~	K10 ~	~	TIMJ 4 ~	0~	6308755	3	TT8020 K10 TT6030
