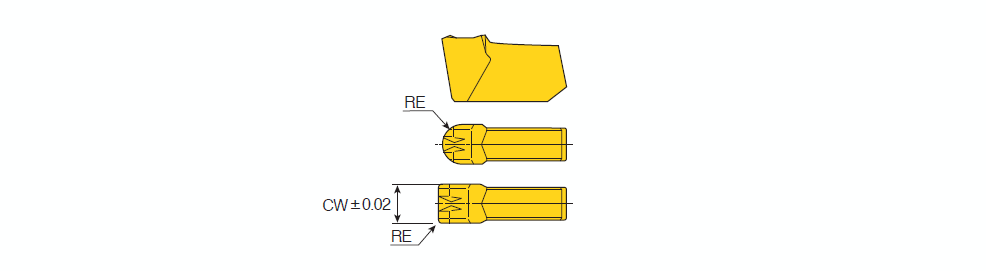

TIPV E : Single ended inserts for precision parting, grooving & milling with V chip breaker and honing

Designation	SSC	CW	RE	S1	SC	fz (max)	fz (min)	0	ClssID	CEDC	ESP	GRDMFG	IIC	Pocket	WEP	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TIPV 3.00E0.40	4	3.00	0.40	4.00~	L ~	0.180	0.060	~	71DDA089C8D1E ~	1~	G50 ~	TT5100~	IS$$16570059248808 ~	TIPV 3 ~	0~	6450154	2	TT5100 TT6030
TIPV 3.00E1.50	4	3.00	1.50	4.00~	L ~	0.180	0.060	~	71DDA089C8D1E ~	1~	G50 ~	TT5100~	IS$$16570059248808 ~	TIPV 3 ~	0~	6450156	1	TT5100
TIPV 4.00E0.40	4	4.00	0.40	4.00~	L ~	0.200	0.080	~	71DDA089C8D1E ~	1~	G50 ~	TT5100~	IS$$16570087450998 ~	TIPV 4 ~	0~	6450163	1	TT5100
TIPV 4.00E2.00	4	4.00	2.00	4.00~	L ~	0.200	0.080	~	71DDA089C8D1E ~	1~	G50 ~	K10 ~	IS$$16570087450998 ~	TIPV 4 ~	0~	6450192	2	TT5100 K10
