TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

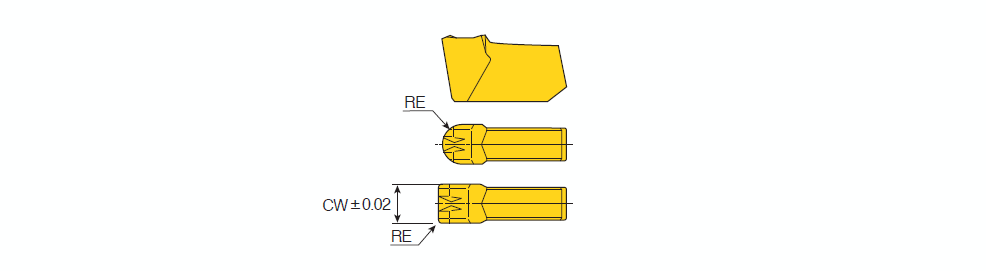

TIPV : Single ended inserts for precision parting, grooving and milling with V type chip breaker & sharp cutting edges

Designation	SSC	CW	RE	S1	SC	fz (max)	fz (min)	0	ClssID	CEDC	ESP	GRDMFG	IIC	Pocket	WEP	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TIPV 1.85 0.10	2	1.85	0.10	0.00~	L ~	0.130	0.050	~	71DDA089C8D1E ~	1~	G50 ~	TT6030~	~	TIPV 1 ~	0~	6450212	1	TT6030
TIPV 2.00 0.20	2	2.00	0.20	2.00~	L ~	0.130	0.050	~	71DDA089C8D1E ~	1~	G50 ~	TT5100~	IS$$25662305143398 ~	TIPV 2 ~	0~	6450213	2	TT5100 TT6030
TIPV 2.15 0.15	2	2.15	0.15	2.00~	L ~	0.130	0.050	~	71DDA089C8D1E ~	1~	G50 ~	K10 ~	IS$$25662305143398 ~	TIPV 2 ~	0~	6450214	2	K10 TT6030
TIPV 2.65 0.15	4	2.65	0.15	4.00~	L ~	0.180	0.060	~	71DDA089C8D1E ~	1~	G50 ~	TT5100~	~	TIPV 2 ~	0~	6450230	1	TT5100
TIPV 3.00 0.20	4	3.00	0.20	4.00~	L ~	0.180	0.060	~	71DDA089C8D1E ~	1~	G50 ~	K10 ~	IS$$16570059248808 ~	TIPV 3 ~	0~	6450231	2	TT5100 K10
TIPV 4.00 0.20	4	4.00	0.20	4.00~	L ~	0.200	0.080	~	71DDA089C8D1E ~	1~	G50 ~	TT5100~	IS$$16570087450998 ~	TIPV 4 ~	0~	6450247	1	TT5100
TIPV 4.15 0.15	4	4.15	0.15	4.00~	L ~	0.200	0.080	~	71DDA089C8D1E ~	1~	G50 ~	TT5100~	IS$$16570087450998 ~	TIPV 4 ~	0~	6450248	1	TT5100
