TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

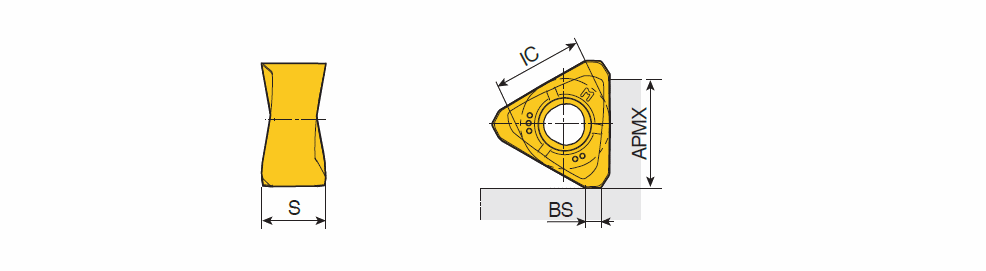

TNMX 22 PNTN : Triangular double-sided inserts with strong 6 cutting edges for 90° shouldering of heavy & general machining

Designation	l	IC	S	BS	APMX	S1	CEDC	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TNMX 2207 PNTN	12.70~	12.70	8.00	2.20	15.00	1.00~	6~	M2R-TN22 ~	4.50	12.00	0.300	0.150	M8 ~	T ~	U60 ~	PNTN ~	8525B ~	~	TNMX 22 ~	0~	6338317		6		TT8080 TT8525B TT7080 TT9080 TT6080 TT2510
