TaeguTec Cutting Tools - Metal Working Tools - Hole Making -

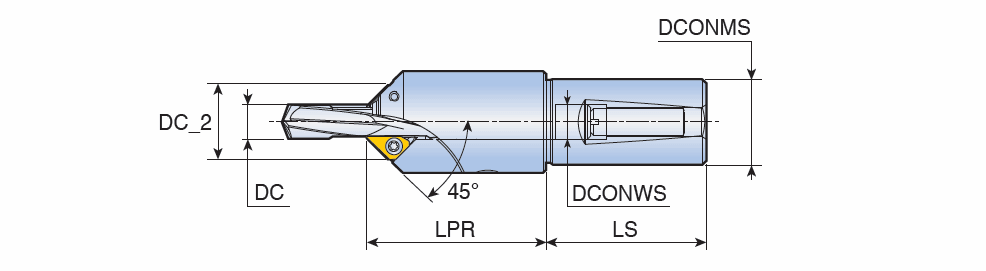

T-CHAMFER-...-T1 : Drill holders of chamfering and drilling together for solid carbide drills

Designation	DCN	DCX	DCONMS	DC_2	DCONWS	LPR	LS	Shank	S1		ULDR	Machines	Zeff	SSC	DF	ClssID	CICT	DC	IIC	LTA	GICAT
T-CHAMFER 080-20T1-06	7.10	8.00	20.00	18.80	8.00	47.4	50.0	WN ~	6.00~	N ~	0.00~	~	2~	8.00 ~	25.00~	71E01A069566C ~	2~	7.10~	IS$$80462026706792 ~	47.40~	6344041
T-CHAMFER 090-20T1-06	8.10	9.00	20.00	19.80	9.00	47.4	50.0	WN ~	6.00~	N ~	0.00~	~	2~	9.00 ~	25.00~	71E01A069566C ~	2~	8.10~	IS$$80462026706792 ~	47.40~	6342376
T-CHAMFER 100-32T1-09	9.10	10.00	32.00	24.90	10.00	67.3	60.0	WN ~	9.00~	N ~	0.00~	~	2~	10.00 ~	38.00~	71E01A069566C ~	2~	10.10~	IS$$433139859699570 ~	67.30~	6342369
T-CHAMFER 110-32T1-09	10.10	11.00	32.00	25.90	11.00	67.3	60.0	WN ~	9.00~	N ~	0.00~	~	2~	11.00 ~	38.00~	71E01A069566C ~	2~	11.10~	IS$$433139859699570 ~	67.30~	6344038
T-CHAMFER 120-32T1-09	11.10	12.00	32.00	26.90	12.00	67.3	60.0	WN ~	9.00~	N ~	0.00~	~	2~	12.00 ~	38.00~	71E01A069566C ~	2~	12.10~	IS$$433139859699570 ~	67.20~	6342370
T-CHAMFER 130-32T1-09	12.10	13.00	32.00	27.90	13.00	67.3	60.0	WN ~	9.00~	N ~	0.00~	~	2~	13.00 ~	38.00~	71E01A069566C ~	2~	13.10~	IS$$433139859699570 ~	90.20~	6342371
T-CHAMFER 140-32T1-09	13.10	14.00	32.00	28.40	14.00	67.3	60.0	WN ~	9.00~	N ~	0.00~	~	2~	14.00 ~	38.00~	71E01A069566C ~	2~	14.10~	IS$$433139859699570 ~	67.20~	6344039
T-CHAMFER 150-32T1-09	14.10	15.00	32.00	29.40	15.00	67.3	60.0	WN ~	9.00~	N ~	0.00~	~	2~	15.00 ~	38.00~	71E01A069566C ~	2~	15.10~	IS$$433139859699570 ~	67.30~	6342372
T-CHAMFER 160-32T1-09	15.10	16.00	32.00	30.40	16.00	67.3	60.0	WN ~	9.00~	N ~	0.00~	~	2~	16.00 ~	38.00~	71E01A069566C ~	2~	16.10~	IS$$433139859699570 ~	92.30~	6219009
T-CHAMFER 170-32T1-09	16.10	17.00	32.00	31.40	17.00	67.3	60.0	WN ~	9.00~	N ~	0.00~	~	2~	17.00 ~	38.00~	71E01A069566C ~	2~	17.10~	IS$$433139859699570 ~	67.30~	6342373
T-CHAMFER 180-32T1-09	17.10	18.00	32.00	32.40	18.00	67.3	60.0	WN ~	9.00~	N ~	0.00~	~	2~	18.00 ~	38.00~	71E01A069566C ~	2~	18.10~	IS$$433139859699570 ~	94.00~	6344040
T-CHAMFER 190-32T1-09	18.10	19.00	32.00	33.40	19.00	75.0	60.0	WN ~	9.00~	N ~	0.00~	~	2~	19.00 ~	38.00~	71E01A069566C ~	2~	19.10~	IS$$433139859699570 ~	102.50~	6342374
T-CHAMFER 200-32T1-09	19.10	20.00	32.00	34.40	20.00	75.0	60.0	WN ~	9.00~	N ~	0.00~	~	2~	20.00 ~	38.00~	71E01A069566C ~	2~	20.10~	IS$$433139859699570 ~	75.00~	6342375
