TaeguTec Cutting Tools - Metal Working Tools - Hole Making -

SHD 3-...-CF : Solid carbide drills for T-CHAMFER holder

Designation	DC	DCONMS	OAL	LCF	LS	L3min	L3max	PL	Zeff		ULDR	Machines	SSC	Min Tol	Max Tol	Shank	ClssID	GRDMFG	ISYC	LTA	NOF	GICAT	giic	Grade & Vc Click on grade for cutting speed value
SHD 3090-CF	9.00	9.00	85.40	42.4	43.0	13.00	23.5	1.40	1~	N ~	0.00~	~	9.00 ~	0~	0~	W ~	71E01A069566C ~	TT9030~	302-01 ~	44.00~	1~	4205744	1	TT9030
SHD 3110-CF	11.00	11.00	96.80	53.8	43.0	21.50	30.0	1.80	1~	N ~	0.00~	~	11.00 ~	0~	0~	W ~	71E01A069566C ~	TT9030~	302-01 ~	53.00~	1~	4205746	1	TT9030
SHD 3130-CF	13.00	13.00	104.10	61.1	43.0	25.50	35.0	2.10	1~	N ~	0.00~	~	13.00 ~	0~	0~	W ~	71E01A069566C ~	TT9030~	302-01 ~	60.00~	1~	4205748	1	TT9030
SHD 3150-CF	15.00	15.00	113.40	65.4	48.0	26.50	40.5	2.40	1~	N ~	0.00~	~	15.00 ~	0~	0~	W ~	71E01A069566C ~	TT9030~	302-01 ~	63.00~	1~	4205750	1	TT9030
SHD 3170-CF	17.00	17.00	121.70	71.7	20.0	24.50	44.0	2.70	1~	N ~	0.00~	~	17.00 ~	0~	0~	W ~	71E01A069566C ~	TT9030~	302-01 ~	71.00~	1~	4205752	1	TT9030
SHD 3180-CF	18.00	18.00	125.90	75.9	50.0	26.50	48.0	2.90	1~	N ~	0.00~	~	18.00 ~	0~	0~	W ~	71E01A069566C ~	TT9030~	302-01 ~	75.00~	1~	4205753	1	TT9030
SHD 3190-CF	19.00	19.00	130.00	76.0	54.0	26.50	49.0	3.00	1~	N ~	0.00~	~	19.00 ~	0~	0~	W ~	71E01A069566C ~	TT9030~	302-01 ~	77.00~	1~	4205754	1	TT9030

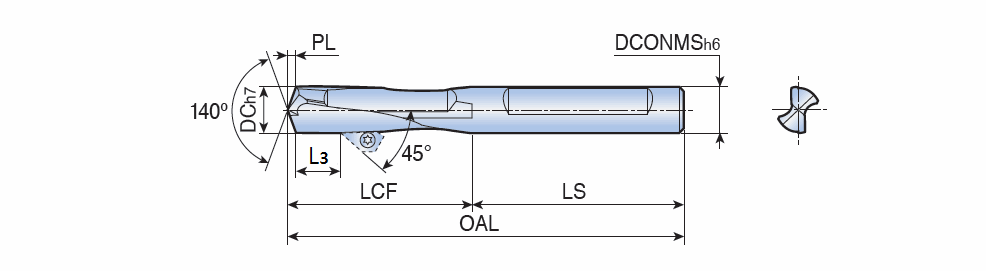

'L3'is factored with a 45° insert positioned in insert pocket
Solid carbide drill with internal coolant holes is available on request
