Turning
Main Application

PDNNR/L : Lever type holders with 62.5° approach ang for negative 55° Rhombic inserts

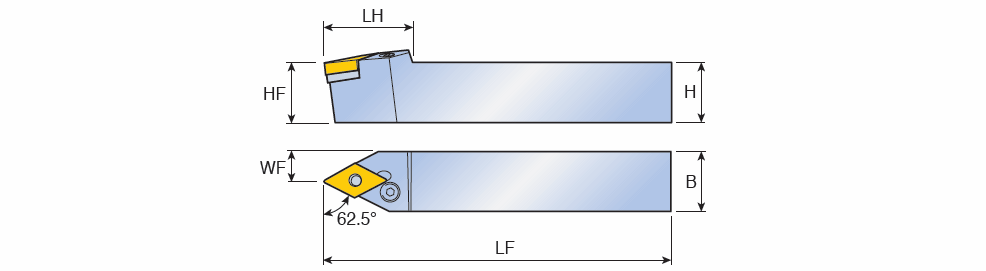

Right-hand shown

Right-hand shown

  DesignationHF H B LF LH WF IC t Kr KAPR CL Tool typ HAND ClssID MIID IIC IIC_2 IIC_3 GICATGIREMgiicGICODE
  PDNNL 2020 K15 20.020.020.0125.0036.510.0012.70~6.35~60~63.0~LEVER ~SQUARE ~L ~71E01A0E85121 ~DNGA 150608 IS$$581084907694694 ~IS$$808521261787470 ~IS$$850587966573147 ~3600118 0
  PDNNR 2020 K15 20.020.020.0125.0036.510.0012.70~6.35~60~63.0~LEVER ~SQUARE ~R ~71E01A0E85121 ~DNGA 150608 IS$$581084907694694 ~IS$$808521261787470 ~IS$$850587966573147 ~3600119 0
  PDNNL 2525 M15 25.025.025.0150.0036.512.0012.70~6.35~60~63.0~LEVER ~SQUARE ~L ~71E01A0E85121 ~DNGA 150608 IS$$581084907694694 ~IS$$808521261787470 ~IS$$850587966573147 ~3600458 0
  PDNNR 2525 M15 25.025.025.0150.0036.512.0012.70~6.35~60~63.0~LEVER ~SQUARE ~R ~71E01A0E85121 ~DNGA 150608 IS$$581084907694694 ~IS$$808521261787470 ~IS$$850587966573147 ~3600459 0
  PDNNL 3232 P15 32.032.032.0170.0036.516.8012.70~6.35~60~63.0~LEVER ~SQUARE ~L ~71E01A0E85121 ~DNGA 150608 IS$$581084907694694 ~IS$$808521261787470 ~IS$$850587966573147 ~3602173 0
  PDNNR 3232 P15 32.032.032.0170.0036.516.8012.70~6.35~60~63.0~LEVER ~SQUARE ~R ~71E01A0E85121 ~DNGA 150608 IS$$581084907694694 ~IS$$808521261787470 ~IS$$850587966573147 ~6341224 0
