Turning
Main Application

PRDCN : Lever type holders with 45° approach angle for positive Round inserts of 7° clearance angle

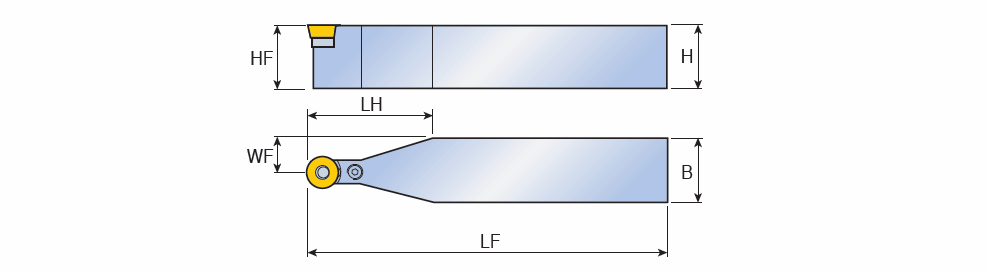

  DesignationHF H B LF LH WF IC t Kr KAPR CL Tool typ HAND ClssID MIID IIC GICATGIREMgiicGICODE
  PRDCN 2020 K12 20.020.020.0125.0050.010.0012.00~4.76~0~90.0~LEVER ~SQUARE ~ ~71E01A0E85121 ~RCMX 120400 IS$$122867667452400 ~3600120 0
  PRDCN 2020 M10 20.020.020.0150.0050.010.0010.00~3.18~0~90.0~LEVER ~SQUARE ~ ~71E01A0E85121 ~RCMX 100300 IS$$100177704970805 ~3600121 0
  PRDCN 2525 M10 25.025.025.0150.0050.012.5010.00~3.18~0~90.0~LEVER ~SQUARE ~ ~71E01A0E85121 ~RCMX 100300 IS$$100177704970805 ~3600462 0
  PRDCN 2525 M12 25.025.025.0150.0050.012.5012.00~4.76~0~90.0~LEVER ~SQUARE ~ ~71E01A0E85121 ~RCMX 120400 IS$$122867667452400 ~3600463 0
  PRDCN 2525 Q16 25.025.025.0180.0050.012.5016.00~6.35~0~90.0~LEVER ~SQUARE ~ ~71E01A0E85121 ~RCMX 160600 IS$$181518440295024 ~3600464 0
  PRDCN 3225 Q12 32.032.025.0180.0050.012.5012.00~4.76~0~90.0~LEVER ~SQUARE ~ ~71E01A0E85121 ~RCMX 120400 IS$$122867667452400 ~6341152 0
  PRDCN 3225 Q16 32.032.025.0180.0050.012.5016.00~6.35~0~90.0~LEVER ~SQUARE ~ ~71E01A0E85121 ~RCMX 160600 IS$$181518440295024 ~3600666 0
  PRDCN 3232 Q16 32.032.032.0180.0050.016.0016.00~6.35~0~90.0~LEVER ~SQUARE ~ ~71E01A0E85121 ~RCMX 160600 IS$$181518440295024 ~3600905 0
  PRDCN 3232 S20 32.032.032.0250.0060.016.0020.00~6.35~0~90.0~LEVER ~SQUARE ~ ~71E01A0E85121 ~RCMX 200600 IS$$71668706762922 ~3605875 0
  PRDCN 4040 S20 40.040.040.0250.0070.020.0020.00~6.35~0~90.0~LEVER ~SQUARE ~ ~71E01A0E85121 ~RCMX 200600 IS$$71668706762922 ~3603021 0
  PRDCN 4040 S25 40.040.040.0250.0080.020.0025.00~7.94~0~90.0~LEVER ~SQUARE ~ ~71E01A0E85121 ~RCMX 250700 IS$$71605614773164 ~3600908 0
  PRDCN 4040 T25 40.040.040.0300.0080.020.0025.00~7.94~0~90.0~LEVER ~SQUARE ~ ~71E01A0E85121 ~RCMX 250700 IS$$71605614773164 ~3600909 0
  PRDCN 5050 U32 50.050.050.0350.0090.025.0032.00~9.52~0~90.0~LEVER ~SQUARE ~ ~71E01A0E85121 ~RCMX 320900 IS$$35800743057664 ~6341160 0
