TaeguTec Cutting Tools - Metal Working Tools - Turning -

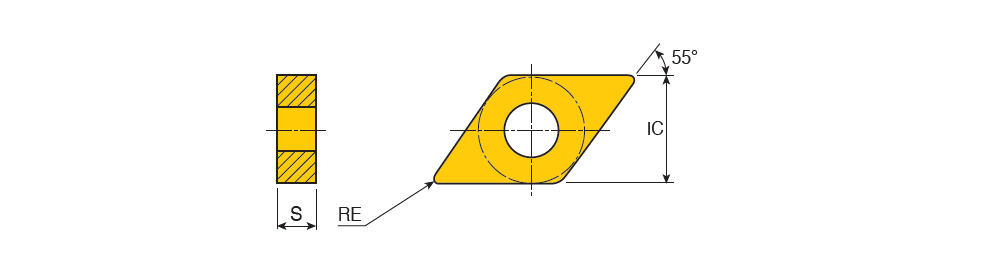

DNMG-FA : Negative 55° Rhombic inserts for super-finishing of steel, stainless steels & heat resistant alloys with excellent chip control

Designation	l	IC	S	RE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
DNMG 150408 FA	14.70~	12.70	4.76	0.80	FA ~	55~	0.00~	0.20	2.00	0.05	0.20	4~	~	~	D ~	71DD68D301C30 ~	CVD ~	8115B ~	2~	ISO$DN1504082NB$$08 ~	432 FA ~	DNMG ~	Y ~	15 ~	6212435		2		TT8115B TT5100
DNMG 150608 FA	14.70~	12.70	6.35	0.80	FA ~	55~	0.00~	0.20	2.00	0.05	0.20	4~	~	U ~	D ~	71DD68D301C30 ~	CVD ~	8115B ~	2~	ISO$DN1506082NB$$08 ~	442 FA ~	DNMG ~	Y ~	15 ~	6212425		3		TT8125B TT8115B TT5100
