TaeguTec Cutting Tools - Metal Working Tools - Turning -

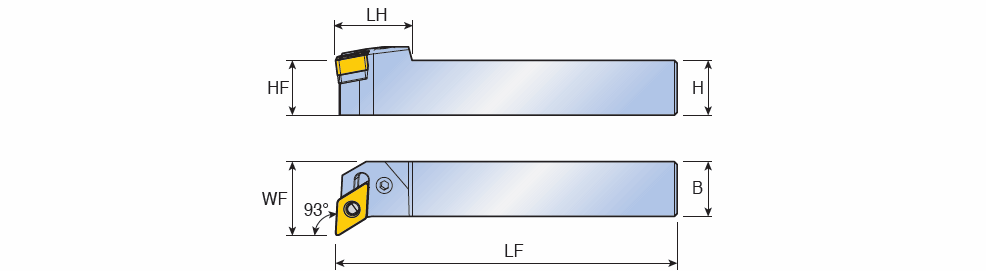

HDUNR/L (RHINO) : Hook lever RHINOTURN holders facing with 93° approach angle for DN.. 1305 inserts

Right-hand shown

Designation	HF	H	B	LF	LH	WF	IC	t	CL	Tool typ	HAND	KAPR	Kr	ClssID	MIID	IIC	IIC_2	IIC_3	GICAT	GIREM	giic	GICODE
HDUNL 2020 K1305	20.0	20.0	20.0	125.00	28.0	27.00	11.11~	5.56~	HOOK LEVER ~	SQUARE ~	L ~	0.0~	93~	71E01A0E85121 ~	DNMG 130508 PC	IS$$1500013479022245 ~	IS$$2001615641700060 ~	IS$$899773775059392 ~	6115411		0
HDUNR 2020 K1305	20.0	20.0	20.0	125.00	28.0	27.00	11.11~	5.56~	HOOK LEVER ~	SQUARE ~	R ~	0.0~	93~	71E01A0E85121 ~	DNMG 130508 PC	IS$$1500013479022245 ~	IS$$2001615641700060 ~	IS$$899759615292330 ~	6111571		0
