TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

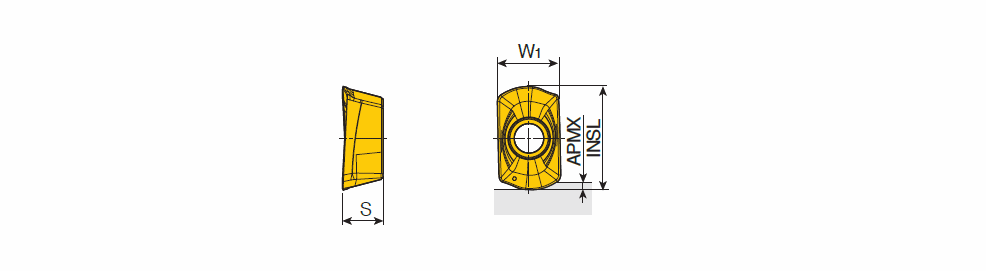

AXMT 0602R-HF : High feed inserts of AXMT 06 with max. depth of cut 0.5 mm mounted on current cutters

TT3540&TT9540 : Available upon customer request.

Designation	CEDC	Insert	INSL	W1	S	APMX	S1	S2	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	Rg		Pocket	ESP	ClssID	CB	GRDMFG	IIC	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
AXMT 0602R-HF	2~	CM-AX06 ~	6.70	4.04	2.64	0.50	6.00~	~	0.20	0.50	0.700	0.300	M8 ~	A ~	0.9~	0.00~	AXMT 06-HF ~	U60 ~	71DD68D91938A ~	HF ~	8525B ~	IS$$578504005419186 ~	0~	6279523		6		TT8080 TT8525B TT3540 TT3535 TT9080 TT2510
