TaeguTec Cutting Tools - Metal Working Tools - Turning -

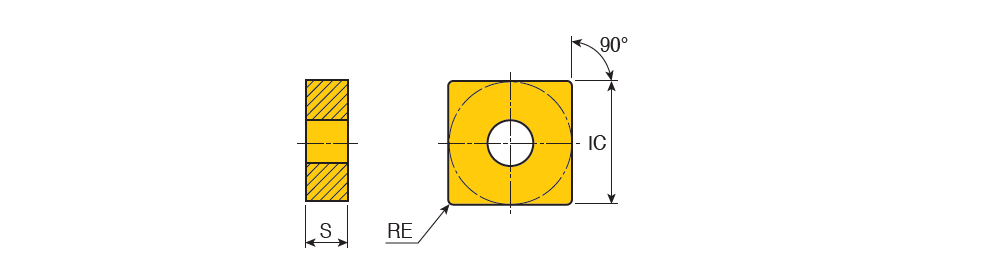

SNMM-RH 25 : Negative single-sided Square inserts for roughing of steel, stainless steel & cast iron with very strong rake geometry

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SNMM 250716 RH	25.40	7.94	1.60	25.40~	RH ~	90~	0.00~	5.00	12.00	0.55	1.00	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8125B ~	2~	ISO$SN2507162NB$$16 ~	854 RH ~	SNMM ~	Y ~	25 ~	6212299	1	TT8125B
SNMM 250724 RH	25.40	7.94	2.40	25.40~	RH ~	0~	0.00~	5.00	12.00	0.55	1.20	8~	~	~	S ~	71DD68D829217 ~	CVD ~	8115B ~	2~	ISO$SN2507242NB$$24 ~	856 RH ~	SNMM ~	Y ~	25 ~	6237754	4	TT7100 TT5100 TT8125B TT8115B
SNMM 250924 RH	25.40	9.52	2.40	25.40~	RH ~	90~	0.00~	5.00	12.00	0.55	1.20	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8115B ~	2~	ISO$SN2509242NB$$24 ~	866 RH ~	SNMM ~	Y ~	~	6248552	3	TT8135B TT8125B TT8115B
