TaeguTec Cutting Tools - Metal Working Tools - Turning -

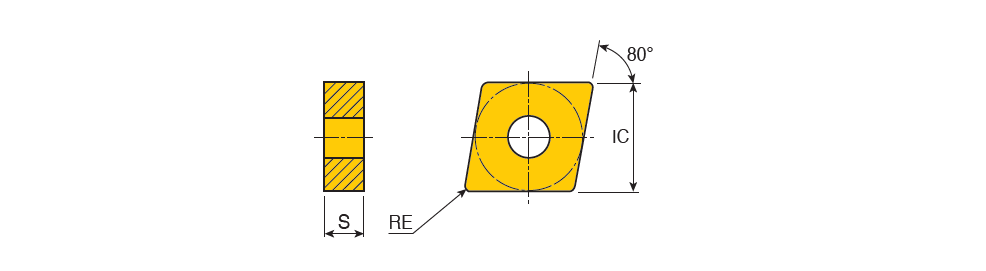

CNMM-RH 25 : Negative single-sided 80° Rhombic inserts for roughing of steel, stainless steel & cast iron with very strong rake geometry

Designation	l	IC	S	RE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
CNMM 250924 RH	25.79~	25.40	9.52	2.40	RH ~	0~	0.00~	0.00	0.00	0.00	0.00	0~	~	~	C ~	~	~	8115B ~	0~	~	~	~	~	~	6294540		3		TT5100 TT8125B TT8115B
