TaeguTec Cutting Tools - Metal Working Tools - Turning -

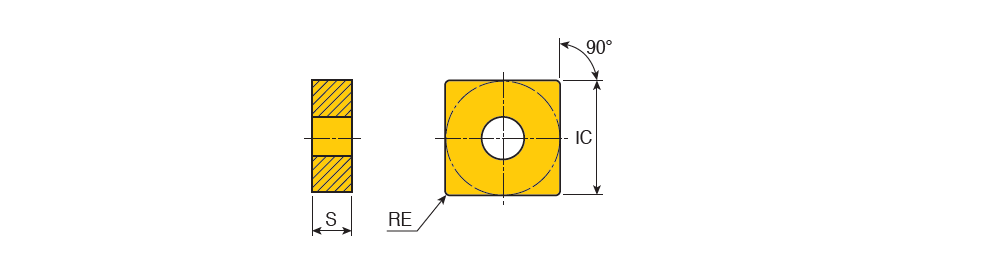

SNMM-HY : Negative Single-sided Square inserts for heavy roughing of large depth of cut & high feed with strong cutting edge

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SNMM 190624 HY	19.05	6.35	2.40	19.05~	HY ~	90~	0.00~	4.00	12.00	0.50	1.10	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8115B ~	2~	ISO$SN1906242NB$$24 ~	646 HY ~	SNMM ~	Y ~	19 ~	6241441		2		TT8125B TT8115B
SNMM 250924 HY	25.40	9.52	2.40	25.40~	HY ~	90~	0.00~	4.00	15.00	0.55	1.50	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8105B ~	2~	ISO$SN2509242NB$$24 ~	866 HY ~	SNMM ~	Y ~	25 ~	6213437		2		TT8125B TT8105B
