TaeguTec Cutting Tools - Metal Working Tools - Turning -

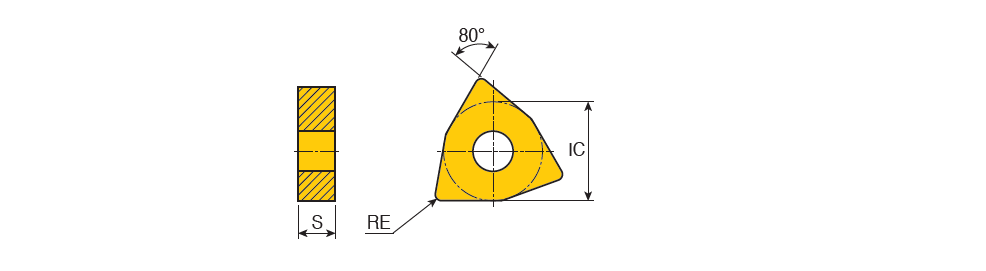

WNMG-FC : Negative 80° Trigon inserts for finish turning and facing of low carbon steel and low carbon alloy steel

Designation	IC	S	RE	CBMD	l	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
WNMG 060404 FC	9.52	4.76	0.40	FC ~	6.52~	80~	0.00~	0.50	2.00	0.07	0.20	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	8115B ~	2~	ISO$WN0604042NB$$04 ~	331 FC ~	WNMG ~	Y ~	6 ~	6212526	2	TT9225 TT8115B
WNMG 080404 FC	12.70	4.76	0.40	FC ~	8.70~	80~	0.00~	0.50	2.00	0.07	0.20	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	8115B ~	2~	ISO$WN0804042NB$$04 ~	431 FC ~	WNMG ~	Y ~	8 ~	6241488	3	TT9225 TT8125B TT8115B
WNMG 080408 FC	12.70	4.76	0.80	FC ~	8.70~	80~	0.00~	0.50	2.00	0.07	0.20	6~	~	U ~	W ~	71DD68D73218C ~	Cermet ~	8105B ~	2~	ISO$WN0804082NB$$08 ~	432 FC ~	WNMG ~	Y ~	8 ~	6240089	7	TT9235 TT9225 TT5100 TT8125B TT9215 TT8105B CT3000
WNMG 080412 FC	12.70	4.76	1.20	FC ~	8.70~	80~	0.00~	0.50	2.00	0.10	0.25	6~	~	~	W ~	71DD68D73218C ~	CVD ~	8115B ~	2~	ISO$WN0804122NB$$12 ~	433 FC ~	WNMG ~	Y ~	8 ~	6212835	1	TT8115B
