TaeguTec Cutting Tools - Metal Working Tools - Turning -

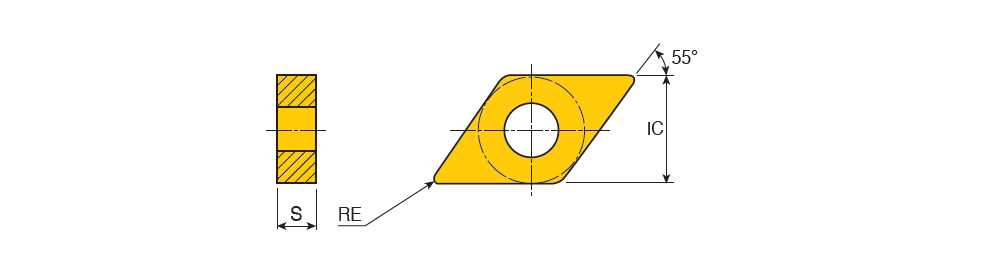

DNMG-PC : Negative 55° Rhombic inserts for medium to semi-finishing applications of steels & automotive parts

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
DNMG 110408 PC	9.52	4.76	0.80	11.63~	PC ~	55~	0.00~	0.50	3.00	0.17	0.40	4~	~	U ~	D ~	71DD68D301C30 ~	CVD ~	8105B ~	2~	ISO$DN1104082NB$$08 ~	332 PC ~	DNMG ~	Y ~	11 ~	6239854	Insert with screw hole	3	TT8125B TT8115B TT8105B
DNMG 150404 PC	12.70	4.76	0.40	15.50~	PC ~	55~	0.00~	0.40	4.00	0.10	0.40	4~	~	U ~	D ~	71DD68D301C30 ~	CVD ~	TT5100~	2~	ISO$DN1504042NB$$04 ~	431 PC ~	DNMG ~	Y ~	15 ~	5520979		3	TT9225 TT5100 TT9215
DNMG 150408 PC	12.70	4.76	0.80	15.50~	PC ~	55~	0.00~	0.50	4.00	0.15	0.50	4~	~	U ~	D ~	71DD68D301C30 ~	CVD ~	8105B ~	2~	ISO$DN1504082NB$$08 ~	432 PC ~	DNMG ~	Y ~	15 ~	6212642		7	TT9235 TT9225 TT5100 TT8125B TT9215 TT8115B TT8105B
DNMG 150412 PC	12.70	4.76	1.20	15.50~	PC ~	55~	0.00~	0.60	4.00	0.17	0.55	4~	~	U ~	D ~	71DD68D301C30 ~	CVD ~	8105B ~	2~	ISO$DN1504122NB$$12 ~	433 PC ~	DNMG ~	Y ~	15 ~	6212649		4	TT5100 TT8125B TT8115B TT8105B
DNMG 150604 PC	12.70	6.35	0.40	0.00~	PC ~	55~	0.00~	0.40	4.00	0.10	0.40	4~	~	~	D ~	71DD68D301C30 ~	CVD ~	8115B ~	2~	ISO$DN1506042NB$$04 ~	441 PC ~	DNMG ~	Y ~	15 ~	6212265		6	TT9235 TT9225 TT5100 TT8125B TT9215 TT8115B
DNMG 150608 PC	12.70	6.35	0.80	15.50~	PC ~	55~	0.00~	0.50	4.00	0.15	0.50	4~	~	U ~	D ~	71DD68D301C30 ~	CVD ~	8105B ~	2~	ISO$DN1506082NB$$08 ~	442 PC ~	DNMG ~	Y ~	15 ~	6213167		7	TT9235 TT9225 TT5100 TT8125B TT9215 TT8115B TT8105B
DNMG 150612 PC	12.70	6.35	1.20	15.50~	PC ~	55~	0.00~	0.60	4.00	0.17	0.55	4~	~	U ~	D ~	71DD68D301C30 ~	CVD ~	8105B ~	2~	ISO$DN1506122NB$$12 ~	443 PC ~	DNMG ~	Y ~	15 ~	6213092		6	TT9235 TT9225 TT5100 TT8125B TT8115B TT8105B
