TaeguTec Cutting Tools - Metal Working Tools - Turning -

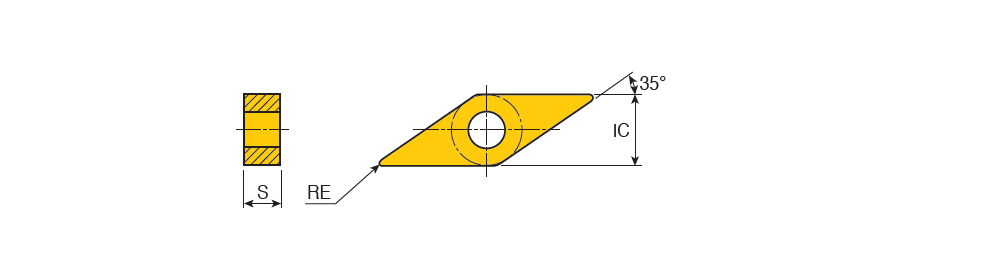

VNMG-PC : Negative 35° Rhombic inserts for medium to semi-finishing applications of steels & automotive parts

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
VNMG 160404 PC	9.52	4.76	0.40	16.60~	PC ~	35~	0.00~	0.40	3.00	0.15	0.36	4~	~	U ~	V ~	71DD68D301C30 ~	CVD ~	8115B ~	2~	ISO$VN1604042NB$$04 ~	331 PC ~	VNMG ~	Y ~	16 ~	6212708		3		TT9225 TT9215 TT8115B
VNMG 160408 PC	9.52	4.76	0.80	16.60~	PC ~	35~	0.00~	0.50	3.00	0.17	0.36	4~	~	U ~	V ~	71DD68D301C30 ~	CVD ~	8105B ~	2~	ISO$VN1604082NB$$08 ~	160408 ~	VNMG ~	Y ~	~	6213014		6		TT9225 TT8125B TT8115B TT8105B TT7015 TT7005

Click the Better Suggestions icon to see more choices.
