TaeguTec Cutting Tools - Metal Working Tools - Turning -

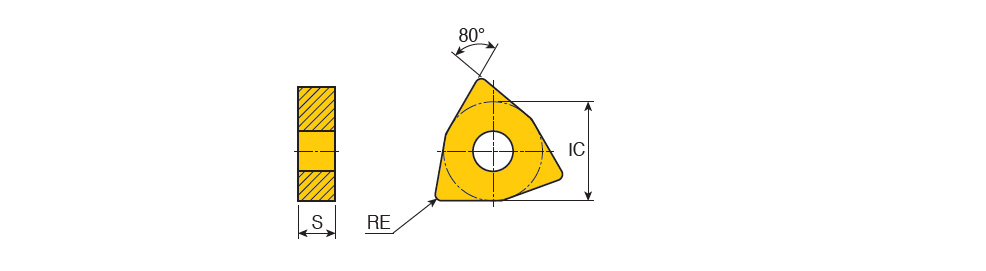

WNMG-PC : Negative 80° Trigon inserts for medium to semi-finishing applications of steels & automotive parts with excellent chip control

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
WNMG 060408 PC	9.52	4.76	0.80	6.52~	PC ~	80~	0.00~	0.50	4.00	0.15	0.50	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	8125B ~	2~	ISO$WN0604082NB$$08 ~	332 PC ~	WNMG ~	Y ~	6 ~	6212994	2	TT9225 TT8125B
WNMG 060412 PC	9.52	4.76	1.20	6.52~	PC ~	80~	0.00~	0.60	4.00	0.17	0.50	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	8125B ~	2~	ISO$WN0604122NB$$12 ~	333 PC ~	WNMG ~	Y ~	6 ~	6241364	1	TT8125B
WNMG 080408 PC	12.70	4.76	0.80	8.70~	PC ~	80~	0.00~	0.50	4.00	0.15	0.50	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	8105B ~	2~	ISO$WN0804082NB$$08 ~	432 PC ~	WNMG ~	Y ~	8 ~	6213170	10	TT9235 TT8135B TT9080 TT9225 TT5100 TT8125B TT5080 TT9215 TT8115B TT8105B
WNMG 080412 PC	12.70	4.76	1.20	8.20~	PC ~	80~	0.00~	0.60	4.00	0.17	0.50	6~	~	~	W ~	71DD68D73218C ~	CVD ~	8105B ~	2~	ISO$WN0804122NB$$12 ~	433 PC ~	WNMG ~	Y ~	8 ~	6242708	9	TT9235 TT8135B TT9080 TT9225 TT5100 TT8125B TT9215 TT8115B TT8105B
WNMG 080416 PC	12.70	4.76	1.60	8.70~	PC ~	80~	0.00~	0.80	4.00	0.20	0.50	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	8125B ~	2~	ISO$WN0804162NB$$16 ~	434 PC ~	WNMG ~	Y ~	8 ~	6212267	1	TT8125B

Click the Better Suggestions icon to see more choices.
