TaeguTec Cutting Tools - Metal Working Tools - Turning -

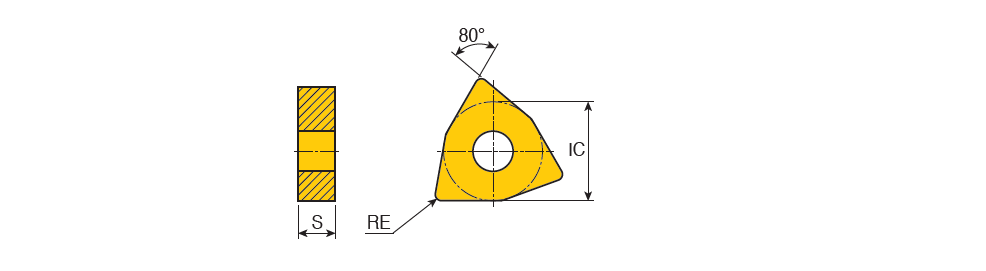

WNMG-ET : Negative 80° Trigon inserts for rough machining of exotic materials

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
WNMG 060408 ET	9.52	4.76	0.80	6.52~	ET ~	80~	0.00~	0.80	4.00	0.15	0.50	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	TT5080~	2~	ISO$WN0604082NB$$08 ~	332 ET ~	WNMG ~	Y ~	6 ~	5580399	5	TT9235 TT9080 TT9225 TT5080 TT9215
WNMG 060412 ET	9.52	4.76	1.20	6.52~	ET ~	80~	0.00~	0.80	4.00	0.15	0.50	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	TT9080~	2~	ISO$WN0604122NB$$12 ~	333 ET ~	WNMG ~	Y ~	6 ~	5580194	4	TT9235 TT9080 TT9225 TT9215
WNMG 080408 ET	12.70	4.76	0.80	8.30~	ET ~	80~	0.00~	0.80	4.50	0.15	0.55	6~	~	~	W ~	71DD68D73218C ~	CVD ~	8125B ~	2~	ISO$WN0804082NB$$08 ~	432 ET ~	WNMG ~	Y ~	8 ~	6212370	7	TT9235 TT9080 TT9225 TT5100 TT8125B TT5080 TT9215
WNMG 080412 ET	12.70	4.76	1.20	8.70~	ET ~	80~	0.00~	0.80	4.50	0.20	0.50	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	TT5080~	2~	ISO$WN0804122NB$$12 ~	433 ET ~	WNMG ~	Y ~	8 ~	5523468	5	TT9235 TT9080 TT9225 TT5080 TT9215
