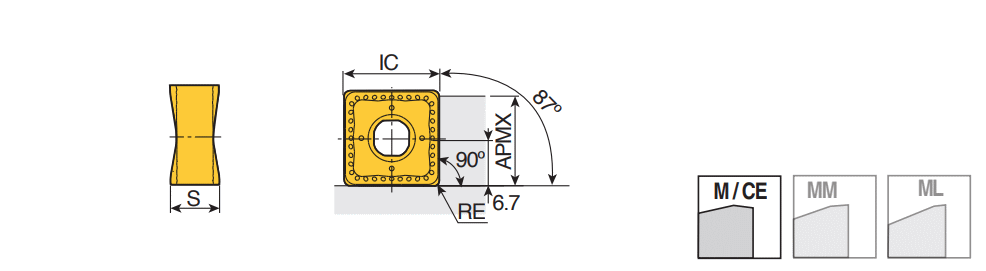

SNGX 1306-M : Double-sided ground square inserts with 8 cutting edges and various corner R for 90° and 88° face mills

Designation	IC	S	RE	APMX	S1	CEDC	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	W.link	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SNGX 130608-M	13.50	6.80	0.80	12.00	13.00~	8~	C2Q-SN13P ~	3.50	10.00	0.200	0.100	M8 ~	30~	S ~	71DD68D829217 ~	G60 ~	M ~	TT6080~	IS$$539599412267424 ~	SNGX 13 ~	0~	5613659	3	TT7080 TT9080 TT6080
SNGX 130612-M	13.50	6.80	1.20	12.00	13.00~	8~	C2Q-SN13P ~	3.50	10.00	0.200	0.100	M8 ~	30~	S ~	71DD68D829217 ~	G60 ~	M ~	TT6080~	IS$$539599412267424 ~	SNGX 13 ~	0~	6178809	4	TT7080 TT9080 TT7515 TT6080
SNGX 130616-M	13.50	6.80	1.60	12.00	13.00~	8~	C2Q-SN13P ~	3.50	10.00	0.200	0.100	M8 ~	30~	S ~	71DD68D829217 ~	G60 ~	M ~	TT6080~	IS$$539599412267424 ~	SNGX 13 ~	0~	6178804	5	TT8080 TT7080 TT9080 TT7515 TT6080
SNGX 130620-M	13.50	6.80	2.00	12.00	13.00~	8~	C2Q-SN13P ~	3.50	10.00	0.200	0.100	M8 ~	30~	S ~	71DD68D829217 ~	G60 ~	M ~	TT6080~	IS$$539599412267424 ~	SNGX 13 ~	0~	6178791	4	TT7080 TT9080 TT7515 TT6080
