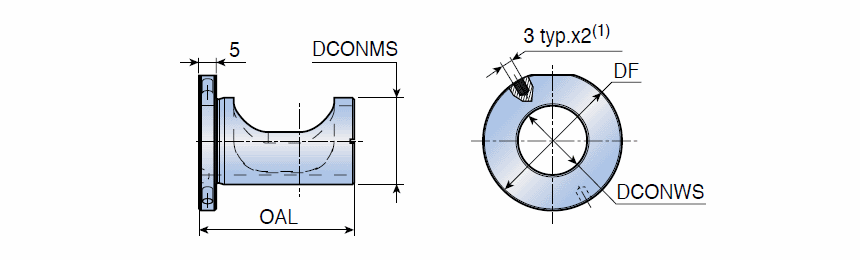

ECCENTER SLEEVE : Eccenter sleeves for reducing or enlarging norminal drill diameter by shifting drill center

Designation	DCONWS	DCONMS	OAL	DF	LTA	GICAT
ECCENTER SLEEVE 20X25	20.00	25.00	44.00	40.00	5.00~	4605063
ECCENTER SLEEVE 25X32	25.00	32.00	46.00	50.00	5.00~	4605064
ECCENTER SLEEVE 32X40	32.00	40.00	55.00	65.00	5.00~	4605065
ECCENTER SLEEVE 40X50	40.00	50.00	62.00	75.00	5.00~	4605066

(1) Holes for inserting a pin are used to facilitate radial adjustment of the sleeve (Pin is not supplied)
