TaeguTec Cutting Tools - Metal Working Tools - Hole Making -

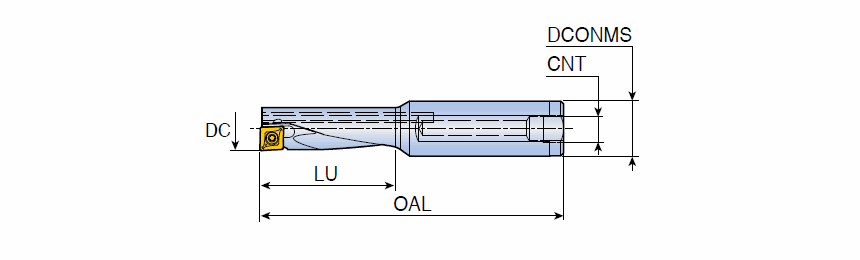

TCAP-3.0DN : Multifunction tools for drilling, boring, facing & external turning with maximum 3.0xD length & coolant holes

Designation	Tool sty	DC	DCONMS	LU	OAL	CNT	S1	S2	l		Machines	Zeff	CBMD	Shank	ClssID	MIID	CICT	ULDR	HAND	CCTMS	CCFMS	LTA	IIC	GICAT	GIREM	giic	GICODE
TCAP 08L-3.0DN12	INSERT TYPE ~	8.00	12.00	24.0	80.00	G 1/16	4.00~	1 ~	6.40~	N ~	NON-ROTATING ~	1~	~	W ~	71E01A00BD93C ~	XCMT 040104L TC	1~	3.00~	L ~	ZYL ~	11 ~	35.00~	IS$$55114992768942 ~	3201921		0
TCAP 08R-3.0DN12	INSERT TYPE ~	8.00	12.00	24.0	80.00	G 1/16	4.00~	1 ~	6.40~	N ~	NON-ROTATING ~	1~	~	W ~	71E01A00BD93C ~	XCMT 040104R TC	1~	3.00~	R ~	ZYL ~	11 ~	35.00~	IS$$55113221292615 ~	3201915		0
