TaeguTec Cutting Tools - Metal Working Tools - Tooling System -

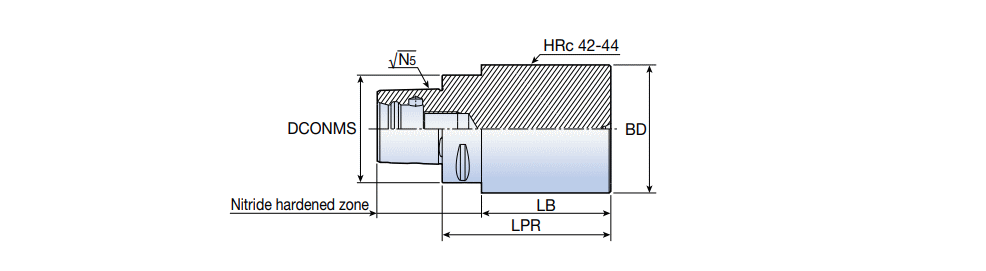

C-B4340 : Blank for tools manufacturing with C-Adapter

Designation	DCONMS	BD	LPR	LB	ClssID	LTA	GICAT
C3 B4340 032090	32	32.00	90.00	-	71EAD3871D313 ~	90.00~	6167934
C3 B4340 050125	32	50.00	125.00	108.2	71EAD3871D313 ~	125.00~	6167936
C3 B4340 060090	32	60.00	90.00	73.2	71EAD3871D313 ~	90.00~	6167900
C3 B4340 070060	32	70.00	60.00	43.2	71EAD3871D313 ~	60.00~	6167937
C3 B4340 090070	32	90.00	70.00	53.0	71EAD3871D313 ~	70.00~	6157526
C4 B4340 040055	40	40.00	55.00	35.0	71EAD3871D313 ~	55.00~	6167938
C4 B4340 040095	40	40.00	95.00	75.0	71EAD3871D313 ~	95.00~	4655455
C4 B4340 052065	40	52.00	65.00	44.0	71EAD3871D313 ~	65.00~	6167939
C4 B4340 060165	40	60.00	165.00	144.0	71EAD3871D313 ~	165.00~	4655790
C4 B4340 066055	40	66.00	55.00	35.0	71EAD3871D313 ~	55.00~	6167940
C4 B4340 080050	40	80.00	50.00	28.2	71EAD3871D313 ~	50.00~	6167941
C4 B4340 080075	40	80.00	75.00	54.0	71EAD3871D313 ~	75.00~	4655791
C4 B4340 100085	40	100.00	85.00	64.0	71EAD3871D313 ~	85.00~	4655792
C5 B4340 050125	50	50.00	125.00	105.0	71EAD3871D313 ~	125.00~	4654871
C5 B4340 075065	50	75.00	65.00	43.2	71EAD3871D313 ~	65.00~	6167942
C5 B4340 075175	50	75.00	175.00	154.0	71EAD3871D313 ~	175.00~	4655083
C5 B4340 090050	50	90.00	50.00	28.2	71EAD3871D313 ~	50.00~	6167943
C5 B4340 090080	50	90.00	80.00	59.0	71EAD3871D313 ~	80.00~	4654872
C5 B4340 110090	50	110.00	90.00	69.0	71EAD3871D313 ~	90.00~	4654873
C6 B4340 063100	63	63.00	100.00	78.0	71EAD3871D313 ~	100.00~	6325723
C6 B4340 095050	63	63.00	100.00	26.2	71EAD3871D313 ~	50.00~	6167944
C6 B4340 075195	63	75.00	95.00	172.0	71EAD3871D313 ~	195.00~	4654532
C6 B4340 110085	63	110.00	85.00	62.0	71EAD3871D313 ~	85.00~	4654536
C6 B4340 120180	63	120.00	180.00	157.0	71EAD3871D313 ~	180.00~	4654655
C6 B4340 130095	63	130.00	195.00	72.0	71EAD3871D313 ~	95.00~	4654548
C8 B4340 080200	80	80.00	200.00	170.0	71EAD3871D313 ~	200.00~	4656303
C8 B4340 120160	80	120.00	160.00	129.0	71EAD3871D313 ~	160.00~	4656283
C8 B4340 130090	80	130.00	90.00	59.0	71EAD3871D313 ~	90.00~	4656284
C8 B4340 145200	80	145.00	200.00	169.0	71EAD3871D313 ~	200.00~	4656285
