Turning
Main Application

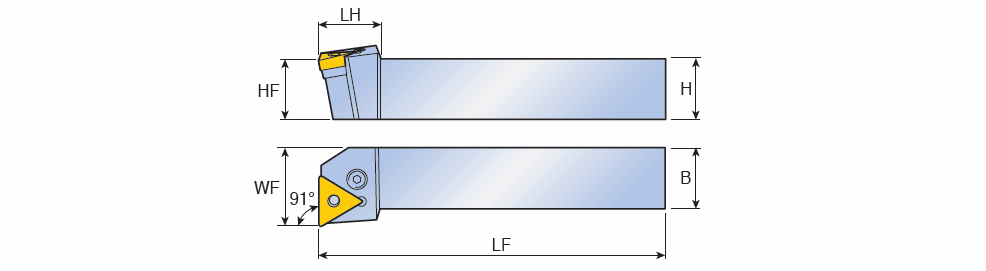

PTFNR/L : Lever type holders facing with 91° approach angle for negative Triangular inserts
Right-hand shown

Right-hand shown

  DesignationHF H B LF LH WF IC t Kr KAPR CL Tool typ HAND ClssID MIID IIC IIC_2 IIC_3 GICATGIREMgiicGICODE
  PTFNL 1616 H16 16.016.016.0100.0020.020.009.52~4.76~91~0.0~LEVER ~SQUARE ~L ~71E01A0E85121 ~TNGA 160408 IS$$499577722031119 ~IS$$505657970253056 ~IS$$979311444151597 ~3600151 0
  PTFNR 1616 H16 16.016.016.0100.0020.020.009.52~4.76~91~0.0~LEVER ~SQUARE ~R ~71E01A0E85121 ~TNGA 160408 IS$$499578017563422 ~IS$$505658269163133 ~IS$$979311444151597 ~3600153 0
  PTFNL 2020 K16 20.020.020.0125.0020.025.009.52~4.76~91~0.0~LEVER ~SQUARE ~L ~71E01A0E85121 ~TNGA 160408 IS$$499577722031119 ~IS$$505657970253056 ~IS$$979311444151597 ~3600152 0
  PTFNR 2020 K16 20.020.020.0125.0020.025.009.52~4.76~91~0.0~LEVER ~SQUARE ~R ~71E01A0E85121 ~TNGA 160408 IS$$499578017563422 ~IS$$505658269163133 ~IS$$979311444151597 ~3600154 0
  PTFNL 2525 M16 25.025.025.0150.0020.032.009.52~4.76~91~0.0~LEVER ~SQUARE ~L ~71E01A0E85121 ~TNGA 160408 IS$$499577722031119 ~IS$$505657970253056 ~IS$$979311444151597 ~3600503 0
  PTFNL 2525 M22 25.025.025.0150.0025.032.0012.70~4.76~91~0.0~LEVER ~SQUARE ~L ~71E01A0E85121 ~TNGA 220408 IS$$227184725698585 ~IS$$415516365937120 ~ ~3600505 0
  PTFNR 2525 M16 25.025.025.0150.0020.032.009.52~4.76~91~0.0~LEVER ~SQUARE ~R ~71E01A0E85121 ~TNGA 160408 IS$$499578017563422 ~IS$$505658269163133 ~IS$$979311444151597 ~3600506 0
  PTFNR 2525 M22 25.025.025.0150.0025.032.0012.70~4.76~91~0.0~LEVER ~SQUARE ~R ~71E01A0E85121 ~TNGA 220408 IS$$217318716558844 ~IS$$237096026163220 ~IS$$415516365937120 ~3600508 0
  PTFNL 3232 P22 32.032.032.0170.0025.040.0012.70~4.76~91~0.0~LEVER ~SQUARE ~L ~71E01A0E85121 ~TNGA 220408 IS$$227184725698585 ~IS$$415516365937120 ~ ~6341229 0
  PTFNR 3232 P22 32.032.032.0170.0025.040.0012.70~4.76~91~0.0~LEVER ~SQUARE ~R ~71E01A0E85121 ~TNGA 220408 IS$$217318716558844 ~IS$$237096026163220 ~IS$$415516365937120 ~3601002 0
  PTFNL 4040 S27 40.040.040.0250.0033.050.0015.88~6.35~91~0.0~LEVER ~SQUARE ~L ~71E01A0E85121 ~TNMG 270612 IS$$81471605372094 ~ ~ ~6341264 0
  PTFNR 4040 S27 40.040.040.0250.0033.050.0015.88~6.35~91~0.0~LEVER ~SQUARE ~R ~71E01A0E85121 ~TNMG 270612 IS$$81471605372094 ~ ~ ~3601003 0
