TaeguTec Cutting Tools - Metal Working Tools - Hole Making -

NPMT...R-G-I/R-HF-I : Intermediate inserts for TBTA-FB high feed deep drill heads (dia 25-65 mm) & TRGD3 Gun drill holders (dia 29-36 mm)

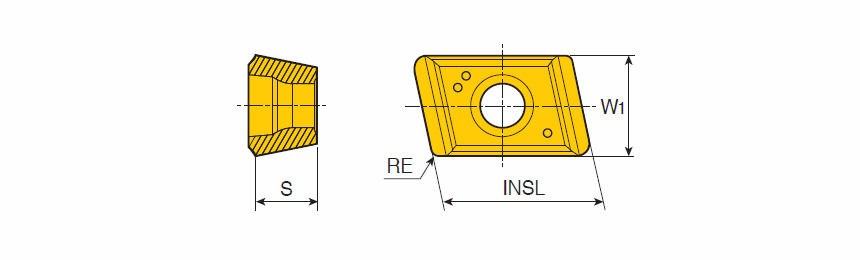

Designation	S1	W1	INSL	S	RE	CBMD	SC	ClssID	GRDMFG	IIC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
NPMT 060304R-G-I	4.00~	5.50	8.00	3.00	0.40	RG ~	B ~	71DDA089C8D1E ~	TT5030~	IS$$1624559905819408 ~	6328893	4	TT5030 TT9130 TT6130 TT9030
NPMT 070404R-G-I	4.00~	6.50	10.00	4.00	0.40	RG ~	B ~	71DDA089C8D1E ~	TT5030~	IS$$1624559905819408 ~	6328897	5	TT5030 TT9130 TT6130 TT9030 TT8125
NPMT 080404R-G-I	4.00~	8.00	10.00	4.00	0.40	RG ~	B ~	71DDA089C8D1E ~	TT5030~	IS$$1624559905819408 ~	6328903	5	TT5030 TT9130 TT6130 TT9030 TT8125
NPMT 100404R-G-I	4.00~	10.00	10.00	4.00	0.40	RG ~	B ~	71DDA089C8D1E ~	TT5030~	IS$$1624559905819408 ~	6328906	4	TT5030 TT9130 TT6130 TT9030
NPMT 130404R-G-I	4.00~	12.50	10.00	4.00	0.40	RG ~	B ~	71DDA089C8D1E ~	TT5030~	IS$$1624559905819408 ~	6328911	5	TT5030 TT9130 TT6130 TT9030 TT8125
NPMT 060304R-HF-I	6.00~	5.50	8.00	3.00	0.40	RG ~	B ~	71DDA089C8D1E ~	TT5030~	IS$$1624559905819408 ~	6255808	2	TT5030 TT9030
NPMT 070404R-HF-I	6.00~	6.50	10.00	4.00	0.40	RG ~	B ~	71DDA089C8D1E ~	TT5030~	IS$$1624559905819408 ~	6255809	1	TT5030
NPMT 080404R-HF-I	6.00~	8.00	10.00	4.00	0.40	RG ~	B ~	71DDA089C8D1E ~	TT9030~	IS$$1624559905819408 ~	6255806	1	TT9030
NPMT 130404R-HF-I	6.00~	12.50	10.00	4.00	0.40	RG ~	B ~	71DDA089C8D1E ~	TT9030~	IS$$1624559905819408 ~	6255807	1	TT9030
