TFMBL-R-06 : High feed mills with BLMP 06 inserts of 4 cutting edges in maximum depth of cut ap 1.0 mm

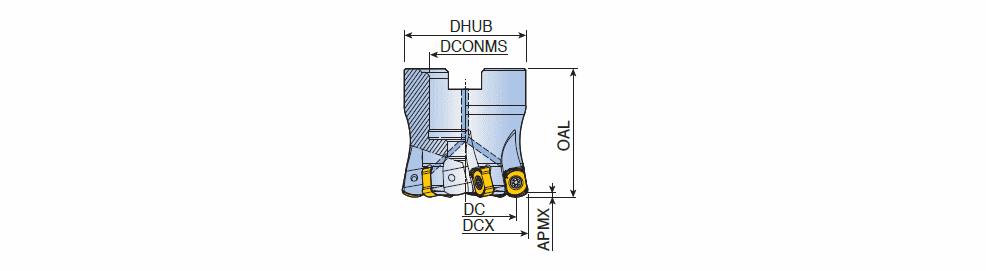

Designation	Tool sty	DCX	CICT	DC	DCONMS	DHUB	OAL	APMX	Arbor		S1	S5	RMPX	HAND	KAPR	PD	Insert	Mtg. Ref	D Inner	Pocket	L1	FF/RN	ClssID	MIID		CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	ZNP	GICAT
TFMBL 432-16R-06	FACE MILL ~	32.00	4	24.30	16.00	30.00	40.00	1.00	A	0.12	6.00~	16.00000 ~	0.90~	~	1.0~	RF ~	C2F-BL06 ~	SH M8X1.25X25 ~	24.30~	BLMP 06 ~	0.00~	FF ~	71E01A05B627B ~	BLMP 0603R-M	O ~	FDA ~	02 ~	IS$$877771310369352 ~	40.00~	4~	4~	4~	3112542
TFMBL 532-16R-06	FACE MILL ~	32.00	5	24.30	16.00	30.00	40.00	1.00	A	0.12	6.00~	16.00000 ~	0.90~	~	1.0~	F ~	C2F-BL06 ~	SH M8X1.25X25 ~	24.30~	BLMP 06 ~	0.00~	FF ~	71E01A05B627B ~	BLMP 0603R-M	O ~	FDA ~	02 ~	IS$$877771310369352 ~	40.00~	5~	5~	5~	3108487
TFMBL 640-16R-06	FACE MILL ~	40.00	6	32.20	16.00	38.00	40.00	1.00	A	0.23	6.00~	16.00000 ~	0.70~	~	1.0~	XF ~	C2F-BL06 ~	SH M8X1.25X25 ~	32.20~	BLMP 06 ~	0.00~	FF ~	71E01A05B627B ~	BLMP 0603R-M	O ~	FDA ~	02 ~	IS$$877771310369352 ~	40.00~	6~	6~	6~	3112543
TFMBL 640-22R-06	FACE MILL ~	40.00	6	32.20	22.00	38.00	40.00	1.00	A	0.19	6.00~	22.00000 ~	0.70~	~	1.0~	XF ~	C2F-BL06 ~	SH M10X1.5X30 ~	32.20~	BLMP 06 ~	0.00~	FF ~	71E01A05B627B ~	BLMP 0603R-M	O ~	FDA ~	02 ~	IS$$877771310369352 ~	40.00~	6~	6~	6~	3108488
TFMBL 650-22R-06	FACE MILL ~	50.00	6	42.20	22.00	45.00	50.00	1.00	A	0.40	6.00~	22.00000 ~	0.60~	~	1.0~	RF ~	C2F-BL06 ~	SH M10X1.5X30 ~	42.20~	BLMP 06 ~	0.00~	FF ~	71E01A05B627B ~	BLMP 0603R-M	O ~	FDA ~	02 ~	IS$$877771310369352 ~	50.00~	6~	6~	6~	3112087
TFMBL 750-22R-06	FACE MILL ~	50.00	7	42.20	22.00	45.00	50.00	1.00	A	0.39	6.00~	22.00000 ~	0.60~	~	1.0~	F ~	C2F-BL06 ~	SH M10X1.5X30 ~	42.20~	BLMP 06 ~	0.00~	FF ~	71E01A05B627B ~	BLMP 0603R-M	O ~	FDA ~	02 ~	IS$$877771310369352 ~	50.00~	7~	7~	7~	3107648
TFMBL 850-22R-06	FACE MILL ~	50.00	8	42.20	22.00	45.00	50.00	1.00	A	0.39	6.00~	22.00000 ~	0.60~	~	1.0~	XF ~	C2F-BL06 ~	SH M10X1.5X30 ~	42.20~	BLMP 06 ~	0.00~	FF ~	71E01A05B627B ~	BLMP 0603R-M	O ~	FDA ~	02 ~	IS$$877771310369352 ~	50.00~	8~	8~	8~	3111986
TFMBL 752-22R-06	FACE MILL ~	52.00	7	44.20	22.00	45.00	40.00	1.00	A	0.40	6.00~	22.00000 ~	0.60~	~	1.0~	F ~	C2F-BL06 ~	SH M10X1.5X30 ~	44.20~	BLMP 06 ~	0.00~	FF ~	71E01A05B627B ~	BLMP 0603R-M	O ~	FDA ~	02 ~	IS$$877771310369352 ~	40.00~	7~	7~	7~	3112830
TFMBL 852-22R-06	FACE MILL ~	52.00	8	44.20	22.00	45.00	40.00	1.00	A	0.35	6.00~	22.00000 ~	0.60~	~	1.0~	XF ~	C2F-BL06 ~	SH M10X1.5X30 ~	44.20~	BLMP 06 ~	0.00~	FF ~	71E01A05B627B ~	BLMP 0603R-M	O ~	FDA ~	02 ~	IS$$877771310369352 ~	40.00~	8~	8~	8~	3112831
TFMBL 763-22R-06	FACE MILL ~	63.00	7	55.50	22.00	47.00	50.00	1.00	A	0.62	6.00~	22.00000 ~	0.50~	~	1.0~	RF ~	C2F-BL06 ~	SH M10X1.5X30 ~	55.50~	BLMP 06 ~	0.00~	FF ~	71E01A05B627B ~	BLMP 0603R-M	O ~	FDA ~	02 ~	IS$$877771310369352 ~	50.00~	7~	7~	7~	3112164
TFMBL 863-22R-06	FACE MILL ~	63.00	8	55.50	22.00	47.00	50.00	1.00	A	0.62	6.00~	22.00000 ~	0.50~	~	1.0~	F ~	C2F-BL06 ~	SH M10X1.5X30 ~	55.50~	BLMP 06 ~	0.00~	FF ~	71E01A05B627B ~	BLMP 0603R-M	O ~	FDA ~	02 ~	IS$$877771310369352 ~	50.00~	8~	8~	8~	3110855
TFMBL 963-22R-06	FACE MILL ~	63.00	9	55.50	22.00	47.00	50.00	1.00	A	0.64	6.00~	22.00000 ~	0.50~	~	1.0~	XF ~	C2F-BL06 ~	SH M10X1.5X30 ~	55.50~	BLMP 06 ~	0.00~	FF ~	71E01A05B627B ~	BLMP 0603R-M	O ~	FDA ~	02 ~	IS$$877771310369352 ~	50.00~	9~	9~	9~	3111987
TFMBL 966-27R-06	FACE MILL ~	66.00	9	58.50	27.00	58.00	50.00	1.00	A	0.72	6.00~	27.00000 ~	0.50~	~	1.0~	XF ~	C2F-BL06 ~	SH M10X1.5X30 ~	58.50~	BLMP 06 ~	0.00~	FF ~	71E01A05B627B ~	BLMP 0603R-M	O ~	FDA ~	02 ~	IS$$877771310369352 ~	50.00~	9~	9~	9~	3112544
