SNMX 1607 ANTN-M : Heavy duty double-sided square inserts with 8 cutting edges for steel and cast iron in 45° face mills

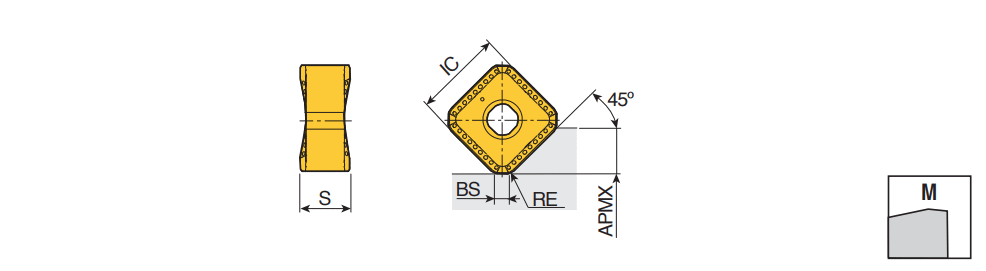

Designation	IC	S	APMX	BS	RE	S1	CEDC	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	l	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SNMX 1607 ANTN-M	16.70	7.80	8.80	2.40	0.80	16.00~	8~	C2Q-SN16 ~	2.50	7.50	0.250	0.125	M8 ~	S ~	0.00~	~	U60 ~	M ~	8525B ~	IS$$193289382311311 ~	SNMX 16 ~	0~	6338327		5		TT8080 TT8525B TT7080 TT9080 TT6080
